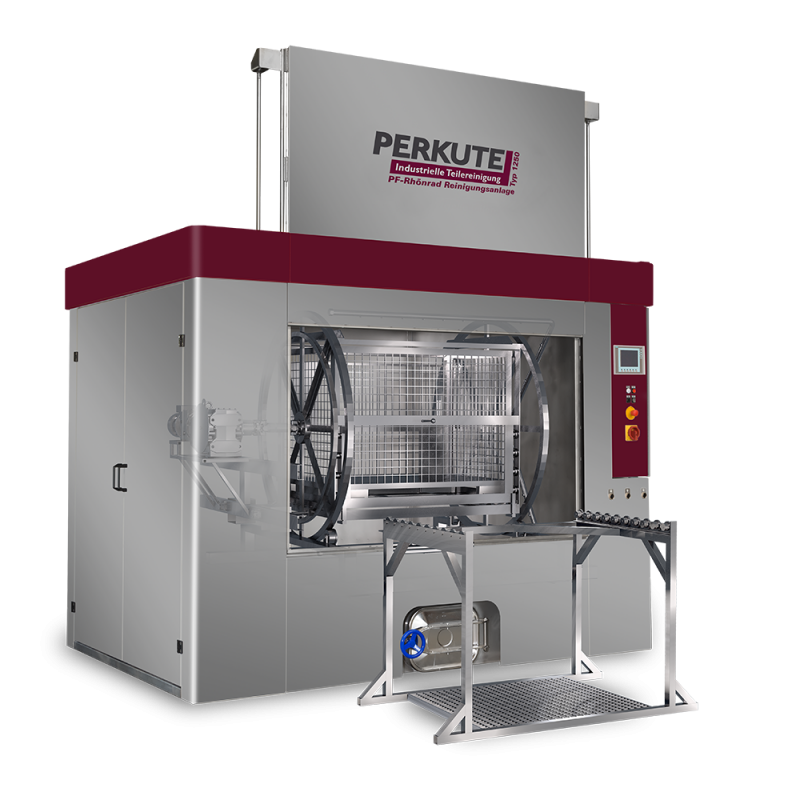

The PERKUTE Clean-o-mat PF rotating wheel cleaning system is a versatile front-loading system for large-volume components, pipes and bulk goods in Euro grid boxes. The rotating pick-up system moves the workpieces around the horizontal axis and ensures uniform all-round cleaning, ideal for complex geometries with highly scooping areas.
In industry, the Clean-o-mat PF cleaning system from PERKUTE impresses with high cleanliness requirements in production and manufacturing. It also shows its strengths in the workshop: whether in the repair workshop, in industry or in daily workshop use - the system reliably masters demanding cleaning tasks.
The robust stainless steel design, the powerful spray cleaning and the precise Siemens S7-1200 control system guarantee a long service life and high process reliability. This makes the PERKUTE Clean-o-mat PF cleaning system ideally suited for industrial production as well as for flexible use in workshops.
Thanks to modular extensions such as multi-tank systems, drying or bath preparation, the system can be flexibly adapted. Smaller baskets can also be safely cleaned with intermediate inserts. This makes the PERKUTE PF cleaning system an economical solution for companies in industry and workshops that expect efficiency, cleanliness and flexibility.
Dimensions |
|
|---|---|
| Usable height | 970 mm |
| Loading height | 1040 mm |
| Usable width | 840 mm |
| Usable length | 1250 mm |
Load |
|
| Permissible basket load | 500 kg |
Cleaning |
|
| Liquid volume 1 tank | 850 l |
| Liquid volume 2 Tank | 850 l / 400 l |
| Pump delivery rate 1 tank | 450 l/min |
| Pump delivery rate 2 tank | 450 l/min / 200 l/min |
| Spray pressure 1 tank | 4.5 bar |
| Spray pressure 2 tank | 4.5 bar / 3 bar |
Supply |
|
| Connected loads | 230/400 V / 50 Hz |
| Pump motor VA 1 tank | 5.5 kW |
| Pump motor VA 2 Tank | 5.5 kW / 1.5 kW |
| Heat output 1 tank | 36 kW |
| Heat output 2 tank | 36 kW / 15 kW |
Dimensions Machine |
|
| Total width (machine) | 2924 mm |
| Total depth (machine) | 2056 mm |
| Total weight (machine) | 1920 kg |
| Overall height (machine) (with lifting door open) | 3440 mm |
