The PERKUTE Clean-o-mat paint stripping system is a proven system for industrial parts cleaning. It offers an automated and efficient solution for paint stripping workpieces in industry as well as in the workshop.
Paint stripping is carried out by spraying using an adapted hot paint stripper. This makes the paint stripping system ideal for continuous operation in industrial production plants as well as for flexible use in workshops. A separate subsequent rinsing system ensures clean results and reliable process safety.
Thanks to its robust stainless steel design, compact construction and easy handling, the Clean-o-mat from PERKUTE is durable, space-saving and particularly user-friendly. Systems specially tailored to your requirements are available on request.
Paint stripping system for industry & workshop
Clean-o-mat paint stripping system
Efficient solution for removing layers of paint and coatings
Basic equipment Clean-o-mat RC-E paint stripping systems
- Compact and robust design for a long service life and reliability
- Stainless steel design for high durability and easy cleaning
- Easy handling thanks to user-friendly design
- Space-saving design for flexible integration into existing production environments
- 3D nozzle pipe system incl. flat jet nozzles for even all-round wetting of the workpieces
- Low water level protection as dry run protection for pump and heater
- Stainless steel suction filter in front of the pump for additional protection and operational safety
- Electric rotary basket drive for efficient cleaning even with complex geometries
- 2" drain tap for easy emptying of the tank
- Safety limit switch on the cover for maximum operational safety
- Stainless steel pump motor for long-lasting and reliable performance
Executions
|
Clean-o-mat RC-E 82
|
Clean-o-mat RC-E 122
|
Clean-o-mat RC-E 162
|
|
| Usable basket Ø | 790 mm | 1190 mm | 1520 mm |
|---|---|---|---|
| Usable height | 500 mm | 500 mm | 550 mm |
| Loading height | 930 mm | 830 mm | 910 mm |
| Liquid volume | 150 l | 370 l | 450 l |
| Injection pressure | 2.5 bar | 4 bar | 4.5 bar |
| Connected loads | 230/400 V / 50 Hz | 230/400 V / 50 Hz | 230/400 V / 50 Hz |
| Pump motor VA | 1.5 kW | 4 kW | 5.5 kW |
| Heat output | 2 x 3 kW | 3 x 5 kW | 3 x 5 kW |
| Total height (machine) | 1200 mm | 1250 mm | 1400 mm |
| Total width (machine) | 1010 mm | 1650 mm | 2200 mm |
| Total depth (machine) | 1180 mm | 1550 mm | 2000 mm |
| Total weight (machine) | 220 kg | 400 kg | 500 kg |
| Width | 558 | 841 | 1076 |
| Permissible basket load | 300 kg | 500 kg | 500 kg |
| Pump delivery rate | 150 l/min | 240 l/min | 450 l/min |
| Rotary basket drive | 0.09 kW | 0.09 kW | 0.09 kW |
| 1-stage steam extraction | 0.45 kW | 0.45 kW | 0.45 kW |
Practical examples from the paint stripping system
The before and after examples document the performance of the PERKUTE Clean-o-mat RC-E paint stripping system in industry and workshops and demonstrate the efficient removal of paint residues.

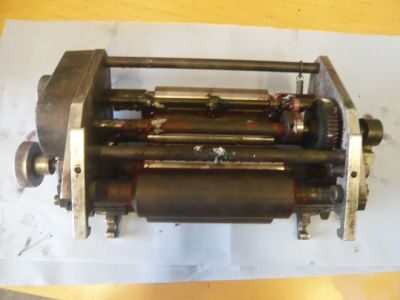

Printing roller before paint stripping

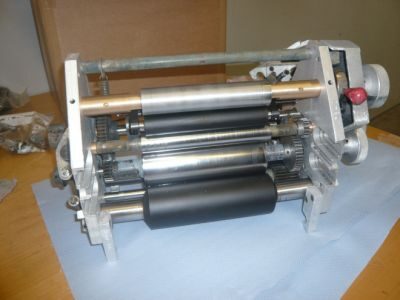

Printing roller after paint stripping

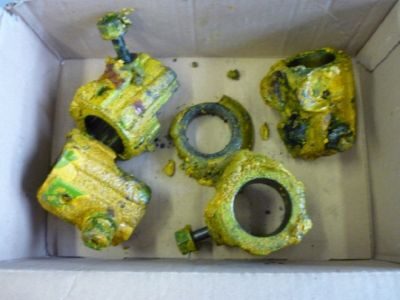

Clamping clutch before paint stripping

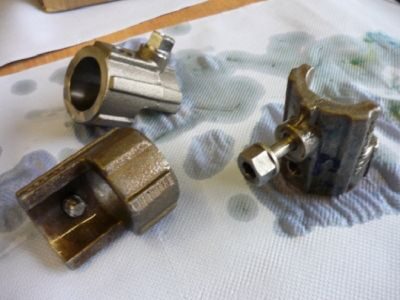

Clamping clutch after paint stripping

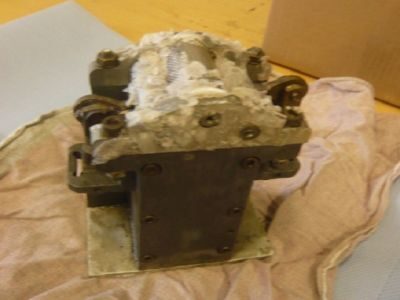

Coating roller before paint stripping

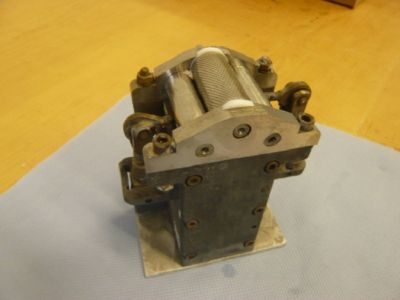

Coating roller after paint stripping

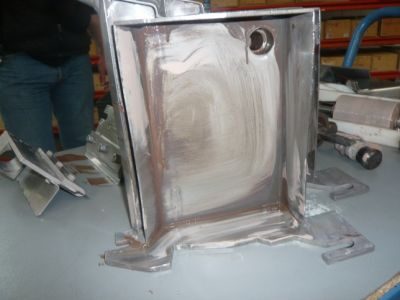

Tub element before paint stripping

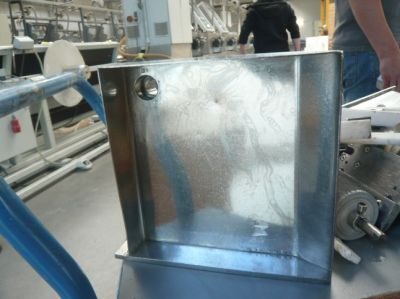

Tub element after paint stripping
