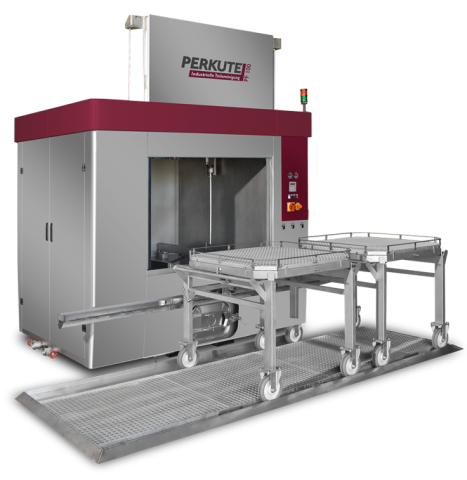

The PERKUTE Clean-o-mat PF is a modern front-loading PF cleaning system that sets new standards for industrial parts cleaning and has been specially developed for use in industry and workshops. Its solid stainless steel construction combined with a sophisticated, easy-care design guarantees a long service life and the best cleaning results. Thanks to optimally coordinated standard equipment, components are cleaned efficiently, ecologically and economically.
Equipped with a powerful washing pump, modern control system based on Siemens S7-1200 and intuitive user interface, this parts cleaning system can be used for a wide range of applications, from series production in industry to demanding cleaning tasks in the workshop.
With a high basket load capacity and modular expansion options, it can be flexibly adapted to specific cleaning tasks and is therefore equally impressive in industry and in the workshop. The PERKUTE Clean-o-mat PF front-loader cleaning system is therefore a durable, adaptable and future-proof cleaning system.
Front loader cleaning system for industry & workshop
Clean-o-mat PF front loader
Robust front loader solution for economical and thorough parts cleaning
Basic equipment of the cleaning system
- Stainless steel design offers high corrosion resistance and ensures a long service life for the machine.
- Compact, robust design saves space in the workshop and ensures stability in continuous operation.
- Easy-care design enables simple cleaning and reduces maintenance costs.

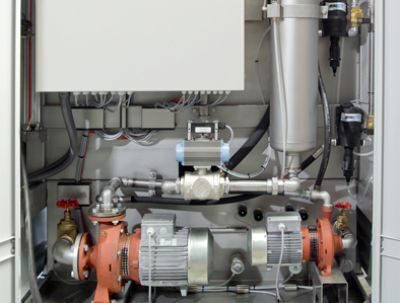

- Powerful washing pump ensures thorough parts cleaning even with heavy soiling.
- High basket load allows heavy and large workpieces to be cleaned in a single operation.
- Low-water protection (dry-run protection) reliably protects the pump from damage when the water level is low.
- Bath cover with filter baskets in the return line prevents heat loss and keeps coarse particles away from the cleaning system.
- Siemens S7-1200 control system with plain text display and KTP 400 touch panel enables intuitive operation and precise process control.
- Complete system enclosure minimizes heat loss, prevents splashing water and increases work safety.
- Loading carriage with support grid ensures ergonomic and safe loading and unloading of workpieces.
- Digital temperature display allows easy monitoring and precise setting of the bath temperature.

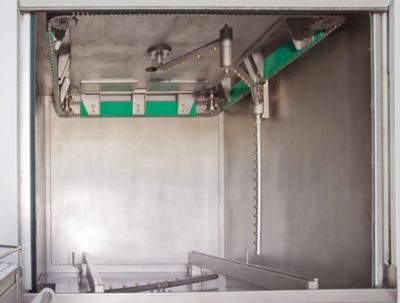

- Electric rotary basket drive (PF 100/PF 150) or square nozzle tube system (PF 200) ensures uniform cleaning of all surfaces.
- Adjustable feet allow the machine to be precisely aligned even on uneven floors.
Executions
|
Clean-o-mat PF 100
|
Clean-o-mat PF 150
|
Clean-o-mat PF 200
|
|
| Connected loads | - | 230/400 V / 50 Hz | 230/400 V / 50 Hz |
|---|---|---|---|
| Loading height | - | 1020 mm | 1040 mm |
| Usable height | - | 1000 mm | 1250 mm |
| Cleaning grid | - | Ø 1500 mm | Ø 2000 mm |
| Liquid volume 1 tank | - | 850 l | 1150 l |
| Liquid volume 2 Tank | - | 850 l / 400 l | 1150 l / 500 l |
| Pump delivery rate 1 tank | - | 450 l/min | 480 l/min |
| Pump delivery rate 2 tank | - | 450 l/min / 200 l/min | 480 l/min / 230 l/min |
| Spray pressure 1 tank | - | 4.5 bar | 6.5 bar |
| Spray pressure 2 tank | - | 4.5 bar / 3 bar | 6.5 bar / 4.5 bar |
| Total width (machine) | - | 2924 mm | 3365 mm |
| Total weight (machine) | - | 1600 kg | 2200 kg |
| Overall height (machine) (with lifting door open) | - | 3440 mm | 3950 mm |
| Total depth (machine) | - | 2056 mm | 2590 mm |
| Permissible basket load | - | 1000 kg | 1250 kg |
Detailed photos/special accessories
Here you can see various application examples and special equipment for the PERKUTE cleaning system Clean-o-mat PF.

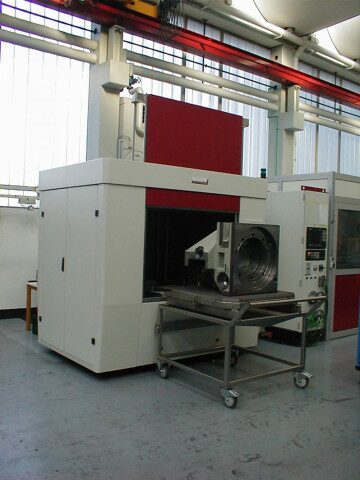

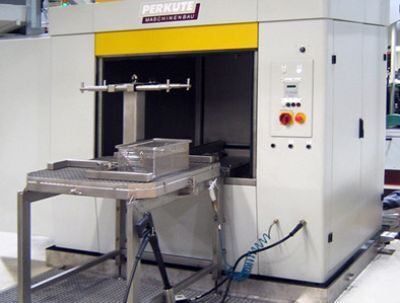

Application example: Cleaning tool holders
The PF 100 front loader serves as a central cleaning device for cleaning tool holders. Particularly practical: Cleaning can be carried out during set-up times, ensuring efficient production processes.

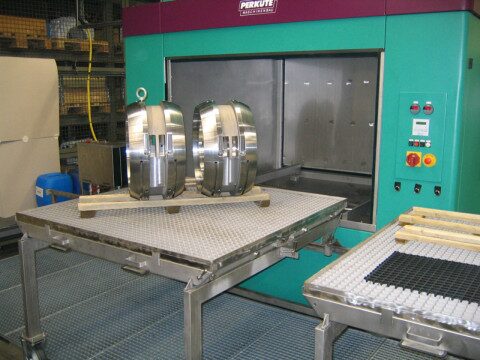

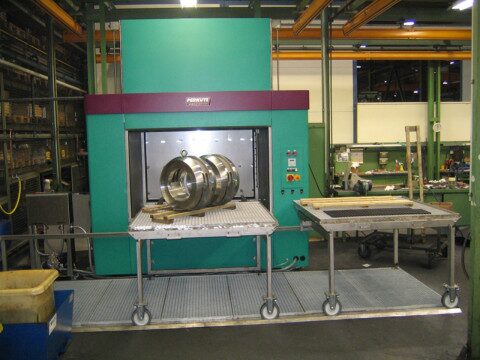

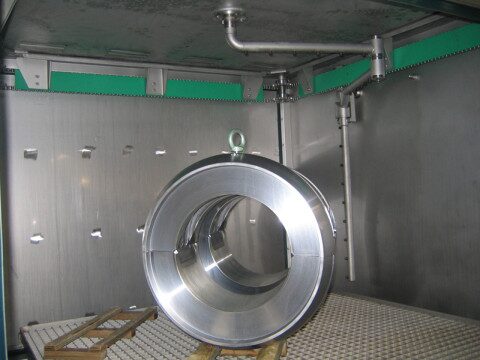

Application example: Cleaning drive bearings
The PF 150 parts cleaning system is equipped with a transverse displacement station and is ideal for batch cleaning of drive bearings. A guided nozzle tube system ensures gentle and thorough cleaning without the need for production movements.

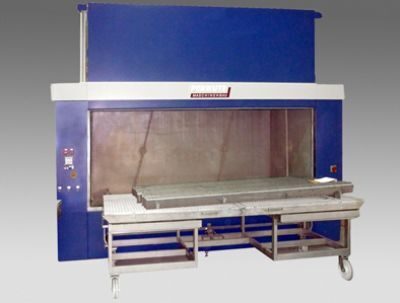

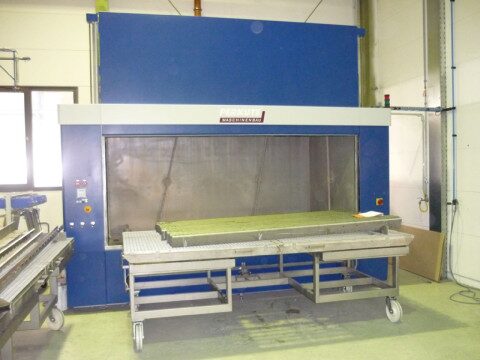

Application example: Degreasing and rinsing bulky components
The PF 300 front loader is designed as a 2-tank system and is particularly suitable for degreasing and rinsing long and bulky components. This ensures optimum preparation for the subsequent painting treatment.
