The PERKUTE Clean-o-mat TW pass-through cleaning system specializes in continuous parts cleaning with high throughput rates in industry and workshops. Thanks to its customer-specific design, this pass-through system can be ideally integrated into existing production processes. Different transport systems and several treatment zones enable a wide range of applications such as the cleaning of crates, containers, pallets, long materials or mass-produced parts.
With robust stainless steel components, compact design and efficient technology modules, the PERKUTE TW series meets the highest cleanliness requirements. Control via Siemens S7-1200 with plain text display ensures precise process control, while temperature settings in all zones and low water protection guarantee process reliability.
The PERKUTE continuous cleaning system also offers automatic steam extraction, insulated tanks to reduce operating costs, maintenance hatches in the hoods and exhaust ducts with throttle valves in all zones. These features make the Clean-o-mat TW system both easy to maintain and reliable in operation - a proven solution for industrial production and workshops with high cleaning requirements.
Pass-through cleaning system for industry & workshop
Clean-o-mat continuous cleaning systems
Continuous 2-zone throughput system for high throughput volumes
Basic equipment of the cleaning system
- Stainless steel design for long-lasting durability
- Compact design for space-saving integration
- Simple & user-friendly handling
- Reduced operating costs thanks to maintenance-friendly design
- Laterally extended tank incl. filter baskets
- Temperature display for all cleaning zones
- Low water level protection to prevent dry running
- Tank insulation to minimize operating costs
- Maintenance hatches in the hoods for easy access
- Extraction duct with throttle flaps in all zones for efficient air extraction
- Stopcock in front of the pump for safe maintenance
- Siemens S7-1200 control system with plain text display and KTP 400 touch panel
Executions
|
Clean-o-mat TW 102
|
Clean-o-mat TW 103
|
Clean-o-mat TW 104
|
|
| Connected loads | 230/400 V / 50 Hz | 230/400 V / 50 Hz | 230/400 V / 50 Hz |
|---|---|---|---|
| Heat output | 18 kW (WT) / 27 kW (NT1) | 18 kW (WT) / 27 kW (NT1) | 18 kW (WT) / 27 kW (NT1) |
| Pump motor VA | 1.5 kW (WT) | 1.5 kW (WT) | 1.5 kW / 4 kW (WT) |
| Width | 200 | 300 | 400 |
| Liquid volume | 300 l (WT) / 600 l (NT1) | 300 l (WT) / 600 l (NT1) | 300 l (WT) / 600 l (NT1) |
| Pump delivery rate | 200 l/min (WT) | 200 l/min (WT) | 200 l/min (WT) |
| Injection pressure | 3 bar (WT) | 3 bar (WT) | 3 bar / 5 bar (WT) |
| Total weight (machine) | Depending on the number of zones | Depending on the number of zones | Depending on the number of zones |
| Total height (machine) | 1840 mm | 1840 mm | 1840 mm |
| Total depth (machine) | 1050 mm | 1050 mm | 1050 mm |
|
Clean-o-mat TW 105
|
Clean-o-mat TW 106
|
Clean-o-mat TW 108
|
|
| Connected loads | 230/400 V / 50 Hz | 230/400 V / 50 Hz | 230/400 V / 50 Hz |
|---|---|---|---|
| Heat output | 18 kW (WT) / 27 kW (NT1) | 18 kW (WT) / 27 kW (NT1) | 18 kW (WT) / 27 kW (NT1) |
| Pump motor VA | 1.5 kW / 4 kW (WT) | 1.5 kW / 4 kW (WT) | 1.5 kW / 4 kW (WT) |
| Width | 500 | 600 | 800 |
| Liquid volume | 300 l (WT) / 600 l (NT1) | 300 l (WT) / 600 l (NT1) | 300 l (WT) / 600 l (NT1) |
| Pump delivery rate | 200 l/min / 280 l/min (WT) | 200 l/min / 280 l/min (WT) | 200 l/min / 280 l/min (WT) |
| Injection pressure | 3 bar / 5 bar (WT) | 3 bar / 5 bar (WT) | 3 bar / 5 bar (WT) |
| Total weight (machine) | Depending on the number of zones | Depending on the number of zones | Depending on the number of zones |
| Total height (machine) | 1840 mm | 1840 mm | 1840 mm |
| Total depth (machine) | 1050 mm | 1050 mm | 1050 mm |
Detailed photos/special accessories
Application example: Degreasing locking cylinders
The TW 103 interlinked cleaning system is equipped with a handling device and is specially designed for degreasing locking cylinders. A linear unit feeds the products to the washing system in the cycle of the machining center, ensuring an efficient, reliable and automated cleaning process.

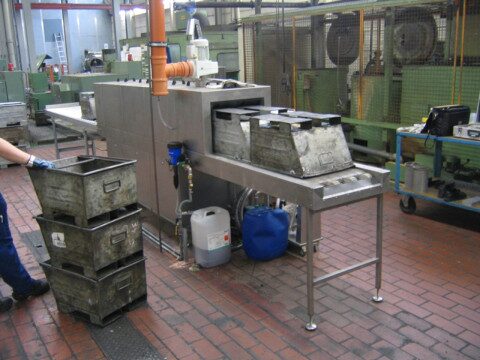

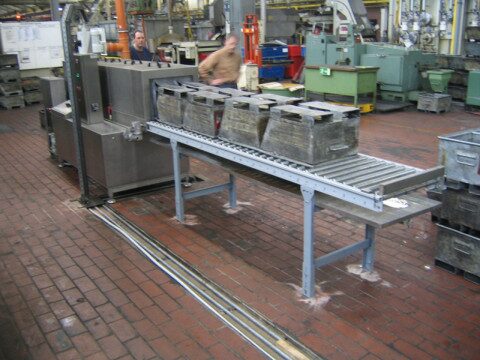

Application example: Cleaning of transport containers
The TW 106 continuous flow cleaning system is a container washing system for cleaning transport containers in circulation.
The containers are cleaned reliably and efficiently in a continuous flow process so that they can be used directly in production again.
The containers are cleaned reliably and efficiently in a continuous flow process so that they can be used directly in production again.

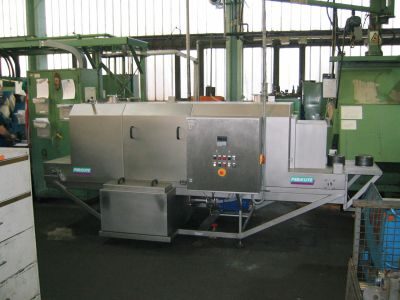

Application example: Parts cleaning for the automotive industry

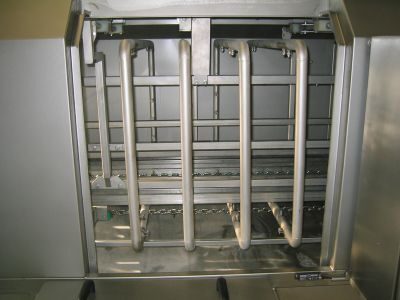

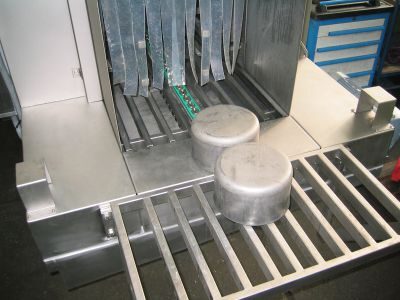

This TW 106 continuous cleaning system was specially designed for products from the automotive industry. Circulating nozzle pipe systems with flat jet nozzles ensure targeted and efficient cleaning. Thanks to the continuous design, a smooth production process with consistently high cleaning quality is guaranteed.
