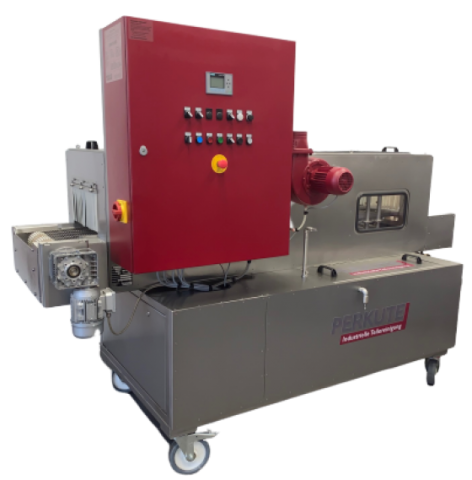

The Clean-o-mat TW 104 is a used PERKUTE measuring system that is offered workshop-tested and ready for immediate use. As a high-performance through-feed cleaning system, it impresses with its robust design and enables continuous parts cleaning, even for large quantities. This makes it particularly suitable for companies in industry and workshops that depend on efficiency, reliability and consistently high cleaning results.
With a stainless steel housing, powerful pumps, multi-stage nozzle pipe system and integrated filter technology, workpieces are cleaned thoroughly and evenly. A programmable control system makes it easy to adapt to different cleaning tasks, while the energy-efficient design reduces operating costs.
As a trade fair system, this used Clean-o-mat TW 104 pass-through cleaning system also offers the advantage that it has only been in operation for a few hours and is in very good condition. This makes it an attractive alternative to a new purchase - inexpensive, immediately available and with proven PERKUTE quality.
Used pass-through cleaning system for industry & workshop
Clean-o-mat TW 104 continuous cleaning system
Tested measuring system with reliable equipment
Features of the Clean-o-mat TW 104 measuring system
The Clean-o-mat TW 104 measuring system is based on the proven equipment of the Clean-o-mat TW series and also offers all the features required for a high-performance continuous cleaning system. The system is workshop-tested and ready for immediate use.
- Year of construction 2018
- Machine no. G1181
- Tunnel aisle (WxH) 400 x 200 mm
- Heating capacity - washing zone 2x9 kW
- Heating capacity - drying zone 9 kW
- Pump output - washing zone 1.5 kW; 3 bar; 200 l/ mm
- Castors or swivel castors for flexible installation
- Extraction hood 150 mm long in the inlet
- Washing and draining zone (1300 mm long)
- Tank capacity 300 liters
- Lockable maintenance hatch in the cover hood
- Connection piece for steam extraction
- Variable belt speed
- Siemens Logo TD control
- belt load up to 48 kg/m²
- Automatic temperature sensor in the tank
- Complete insulation of tank and washroom
- partitioning of the zone by strip curtains
- Low water cut-out for safe operation
- sleeve valve in front of the pump
- Adjustable spray pressure
- Robust link belt chain
- Maintenance-friendly service doors
- 300 mm long infeed conveyor
- Suction duct incl. throttle valves in wash and drip-off zone
- PT 200 plate phase separator
- TBF Topline bag filter, 0.5 m² filter area
- Automatic extraction of water vapor
- Automatic detergent dosing
- Inspection window in the washing zone
- Hot air drying zone with side channel compressor
- Electric drain pump
Technical data
| Year of construction | 2018 | ||
|---|---|---|---|
| Maschinen-Nr. | G1181 | ||
| Tunnel passage (W x H) | 400 x 200 mm | ||
| Heat output - washing zone | 2 x 9 kW | ||
| Heat output - drying zone | 9 kW | ||
| Pumen performance - washing zone | 1,5 kW; 3 bar; 200 l/ mm |
