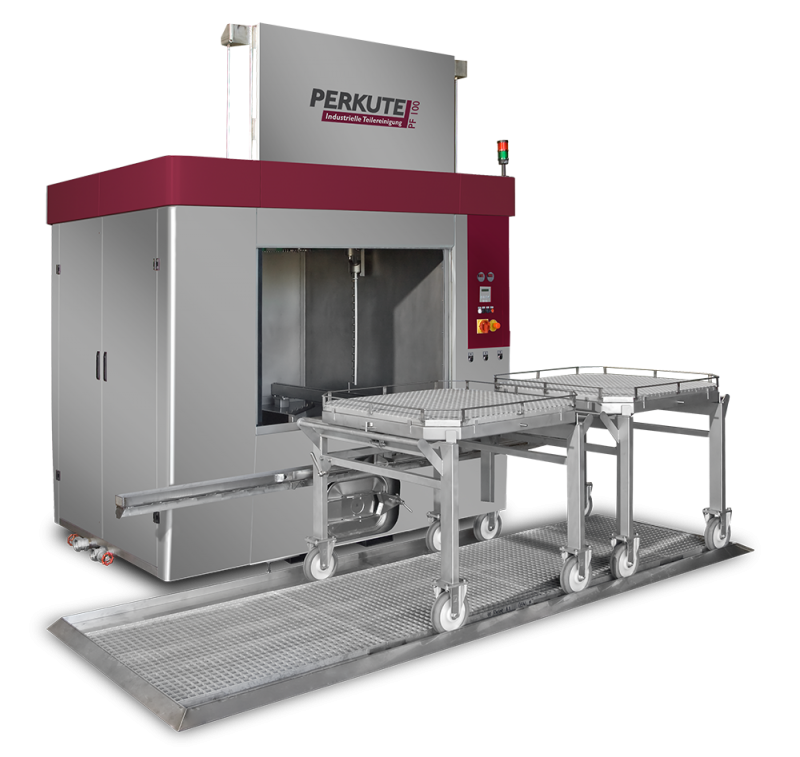

Clean-o-mat PF

The modern cleaning center for the powerful cleaning on the highest standard.

The extensive power spectrum of this solid production series in combination with the standard equipment coordinated optimally sets new standards in cleaning technology. The solid interpretation of the machine components connected with the modern design of the easy-care machine case completes the innovative machine concept. By the choice of specific accessory articles many possible applications open up.

The PERKUTE-system: economically - environmental – effektive
Do you have any further questions?
Ask us like to hear your questions about our products, our services and our company in general. We appreciate your interest in Perkute.
+49 (0) 59 71 / 8 08 16-80 info@perkute.de contact form

Basic equipment

  • Made of stainless steel
  • Compact and sturdy construction
  • Modern design
  • Powerful washing pump
  • High permissible basket load
  • Low water pressure switch as dry-run protection
  • Tank cover in the return flow, filterbasket incl.
  • Control system Siemens S7-1200
    incl. text display and touch panel KTP 400
  • complete machine housing
  • Loading carriage incl. Grate bearing
  • Digital temperature indication
  • Electronic basket drive (PF 100; PF 150)
  • Square blast pipe system
    (PF 200)
  • Adjustable feed


Technical Data

Clean-o-mat PFPF 100PF 150PF 200
Cleaning grate
Usable height
Usable basket diagonal*
Loading height
Ø 1000 mm
800 mm
1260 mm
950 mm
Ø 1500 mm
1000 mm
1755 mm
1020 mm
Ø 2000 mm
1250 mm
2800 mm
1040 mm
Permissible basket load750 kg1000 kg1250 kg
Liquid volume 1 Tank
Liquid volume 2 Tank
Pump flow rate 1 Tank
Pump flow rate 2 Tank
Pump motor 1 Tank
Pump motor 2 Tank
Injection pressure 1 Tank
Injection pressure 2 Tank
Heating capacity 1 Tank
Heating capacity 2 Tank
Rating
650 l
650 l/ 265 l
280 l/min
280 l/min/ 200 l/min
4 kW
4 kW/ 1,5 kW
4 bar
4 bar/ 3 bar
27 kW
27 kW/ 15 kW
230/400 V/ 50 Hz
850 l
850 l/ 400 l
450 l/min
450 l/min/ 200 l/min
5,5 kW
5,5 kW/ 1,5 kW
4,5 bar
4,5 bar/ 3 bar
36 kW
36 kW/ 15 kW
230/400 V/ 50 Hz
1150 l
1150 l/ 500 l
480 l/min
480 l/min/ 230 l/min
11 kW
11 kW/ 4 kW
6,5 bar
6,5 bar/ 4,5 bar
45 kW
45 kW/ 18 kW
230/400 V/ 50 Hz
Total height **
Total width
Total depth
Total weight
3000 mm
2370 mm
1665 mm
1320 kg
3440 mm
2924 mm
2056 mm
1600 kg
3950 mm
3365 mm
2590 mm
2200 kg

No liability accepted for specifications, which are subject to alteration.
* depends on the used nozzle pipe
* * open lift door


Tailor-made machines to be quoted on request.


Details/ Equipment

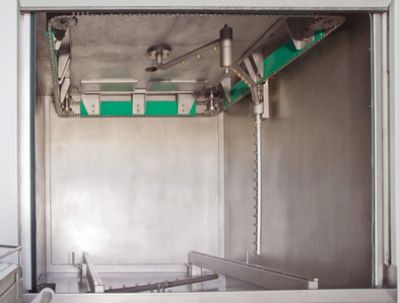

Square blast pipe system Typ PF 150, PF 200
Square blast pipe system Typ PF 150, PF 200

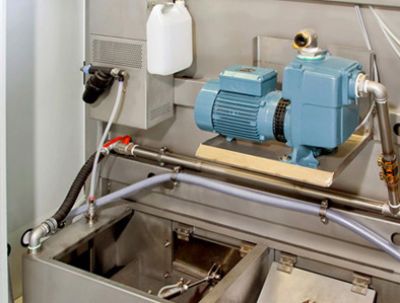

Dismantled tank with valve control and evacuation pump
Dismantled tank with valve control and evacuation pump

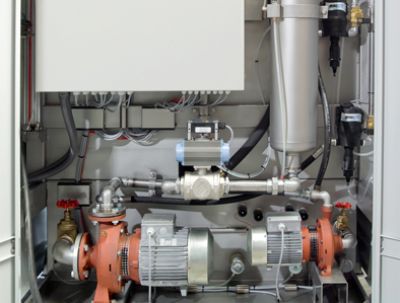

Engineering room
Engineering room
PF 100 with loading platform, receiving device, gun for manual parts cleaning and compressed air pistol
PF 100 with loading platform, receiving device, gun for manual parts cleaning and compressed air pistol
Clean-o-mat PF 150 with custom designed loading station
Clean-o-mat PF 150 with custom designed loading station
PF 300 with load travelling carriage
PF 300 with load travelling carriage
