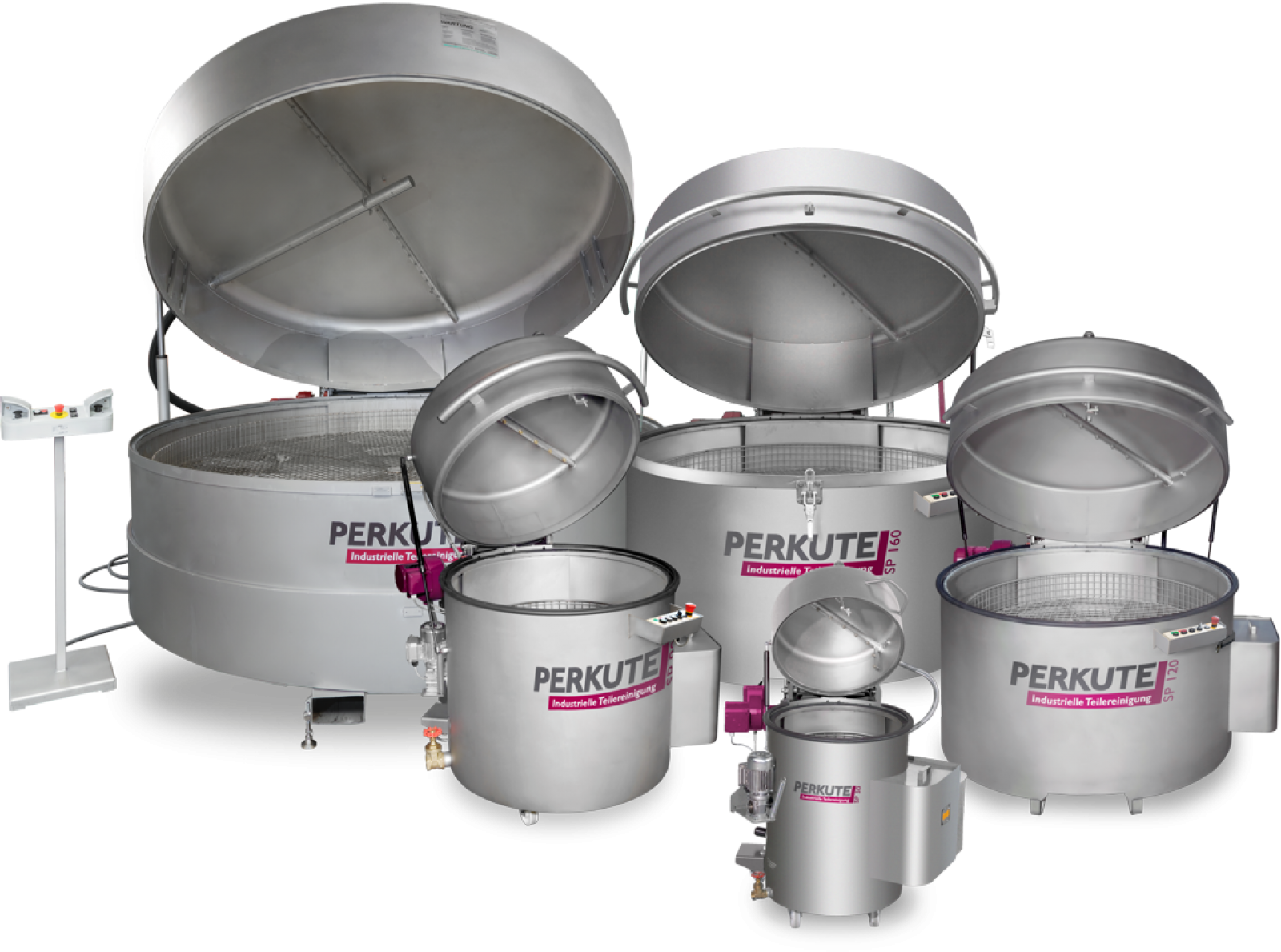

Clean-o-mat SP

The accurate resolve for demanding cleaning tasks and highest demand.

A compact and sturdy construction characterizes the SP machine which is an closed fully automatic machine. The SP meets the highest requirements where total cleanliness and dryness are concerned. We adjust our production to individual demands and are therefore able to offer tailor-made solutions.

The PERKUTE-system: economically - environmental – effektive

Leaflet download Toploader english.pdf (1.091,36 KB)
1.065,78 KB

Do you have any further questions?
Ask us like to hear your questions about our products, our services and our company in general. We appreciate your interest in Perkute.
+49 (0) 59 71 / 8 08 16-80 info@perkute.de contact form

Basic equipment

Made of stainless steel
Compact and sturdy construction
Mobile, can be used anywhere
Powerful stainless steel wash pump
3D-blast pipe system incl. fan nozzles
Low water indicator as dry-run protection
for pump and heating

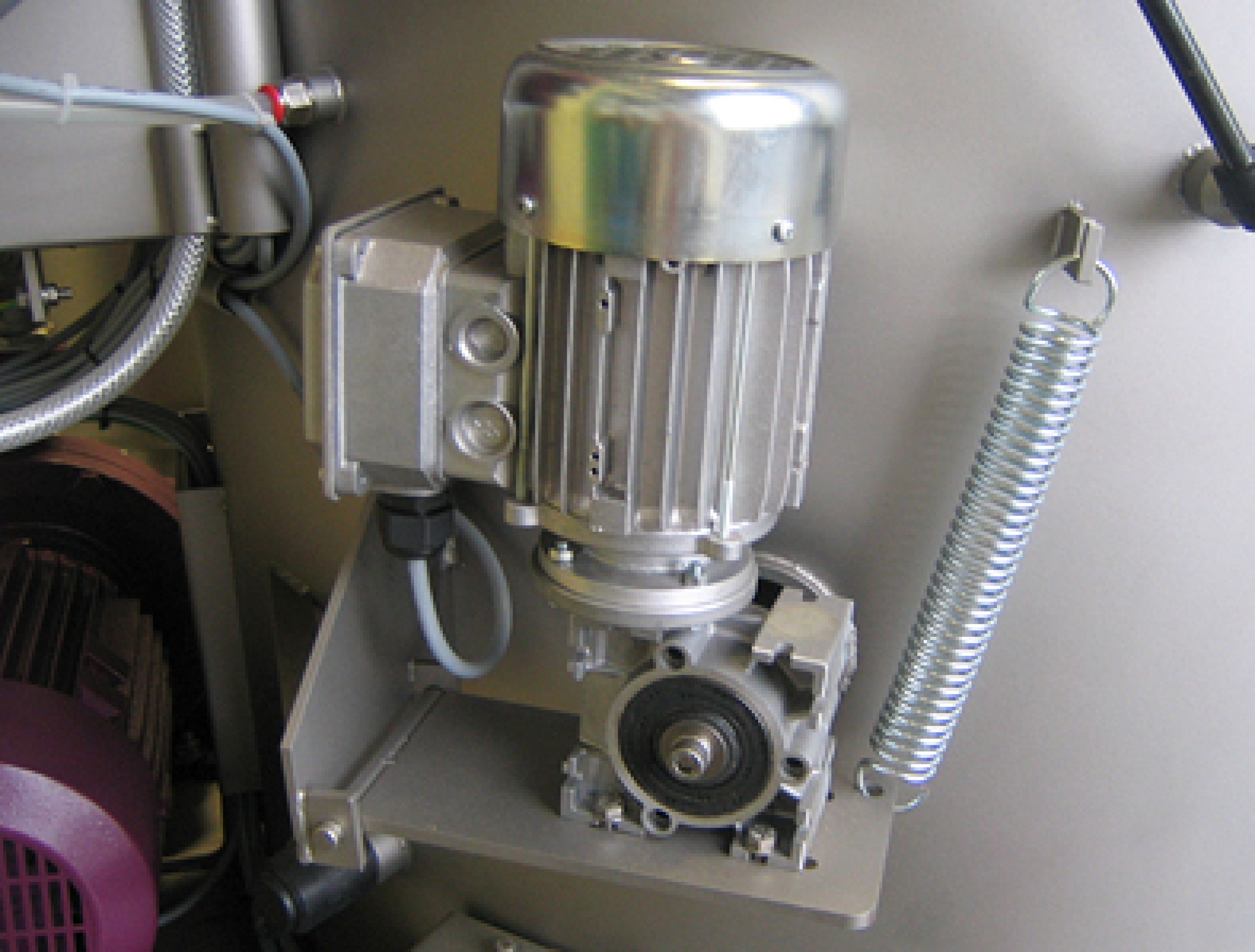

Electronic basket drive by friction wheel or gear system
Tank cover in the return flow, filter baskets incl.
Skimmer
Control system Siemens S7-1200
incl. text display and touch panel KTP 400
as well as control panel
Automatic steam extraction
High permissible basket load
Safety limit switch at cover
2" socket slide valve for the tank emptying

Technical Data

Clean-o-mat SP	SP 50	SP 80	SP 100	SP 120
BasketØ Usable height Loading height	450 mm 350 mm 925 mm	790 mm 500 mm 930 mm	1000 mm 500 mm 930 mm	1190 mm 500 mm 830 mm
Permissible basket load*	200 kg*	500 kg*	500 kg*	500 kg*
Liquid volume Pump flow rate Injection pressure	105 l 150 l/min 3 bar	150 l 200 l/min 3 bar	255 l 280 l/min 5 bar	210 l 280 l/min 5 bar
Rating Pump motor Heating capacity Cage drive Steam extraction 1-step	230/400 V /50 Hz 1,5 kW 6 kW 0,09 kW 0,11 kW	230/400 V/ 50 Hz 1,5 kW 6 kW 0,09 kW 0,11 kW	230/400 V/ 50 Hz 4 kW 9 kW 0,09 kW 0,45 kW	230/400 V/ 50 Hz 4 kW 9 kW 0,09 kW 0,45 kW
Totalheight Totalwidth Totaldepth Totalweight	1270 mm 1100 mm 1200 mm 200 kg	1390 mm 1350 mm 1650 mm 290 kg	1480 mm 1500 mm 1850 mm 390 kg	1300 mm 1650 mm 2050 mm 415 kg

Clean-o-mat SP	SP 160	SP 200	SP 250
BasketØ Usable height Loading height	1520 mm 550 mm 910 mm	2000 mm 550 mm 960 mm	2500 mm 550 mm 960 mm
Permissible basket load*	1000 kg*	1000 kg*	1000 kg*
Liquid volume Pump flow rate Injection pressure	370 l 450 l/min 4,5 bar	840 l 450 l/min 4,5 bar	900 l 550 l/min 4,5 bar
Rating Pump motor Heating capacity Cage drive Steam extraction 1-step	230/400 V /50 Hz 5,5 kW 9+6 kW 0,37 kW 0,45 kW	230/400 V/ 50 Hz 7,5 kW 4x9 kW 0,37 kW 0,45 kW	230/400 V/ 50 Hz 11 kW 4x9 kW 0,37 kW 0,45 kW
Totalheight Totalwidth Totaldepth Totalweight	1500 mm 2050 mm 2500 mm 675 kg	1600 mm 2450 mm 3050 mm 1500 kg	2100 mm 3100 mm 3900 mm 2000 kg

* Surface load/ load capacity increase possible
No lieability accepted for specifications, which are subject to alteration.

Tailor-made machines to be quoted on request.

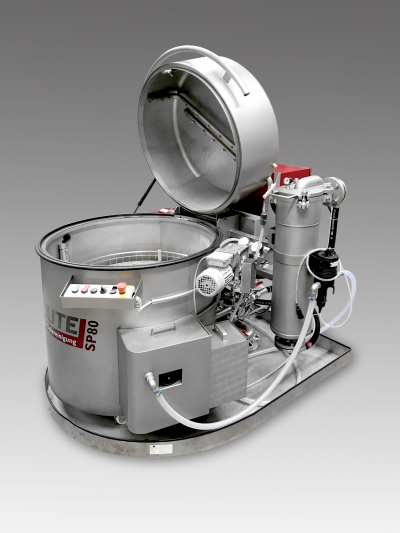

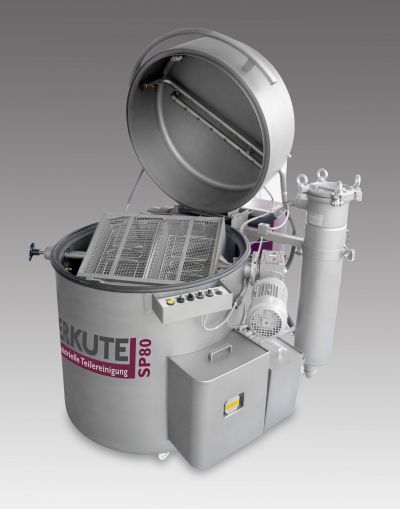

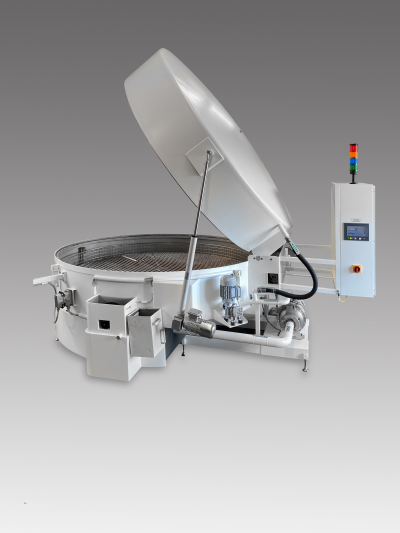

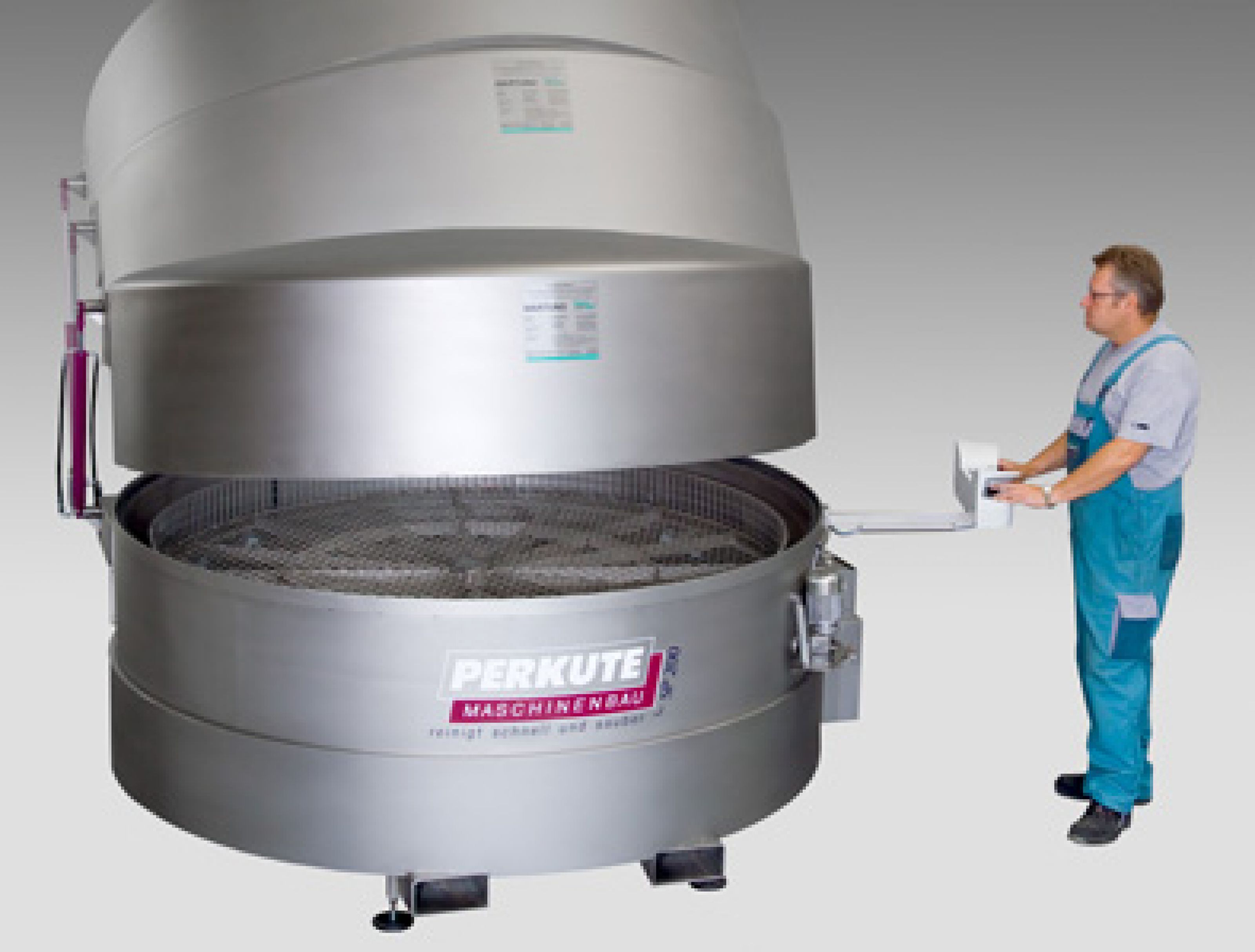

Machine examples Toploader series SP
