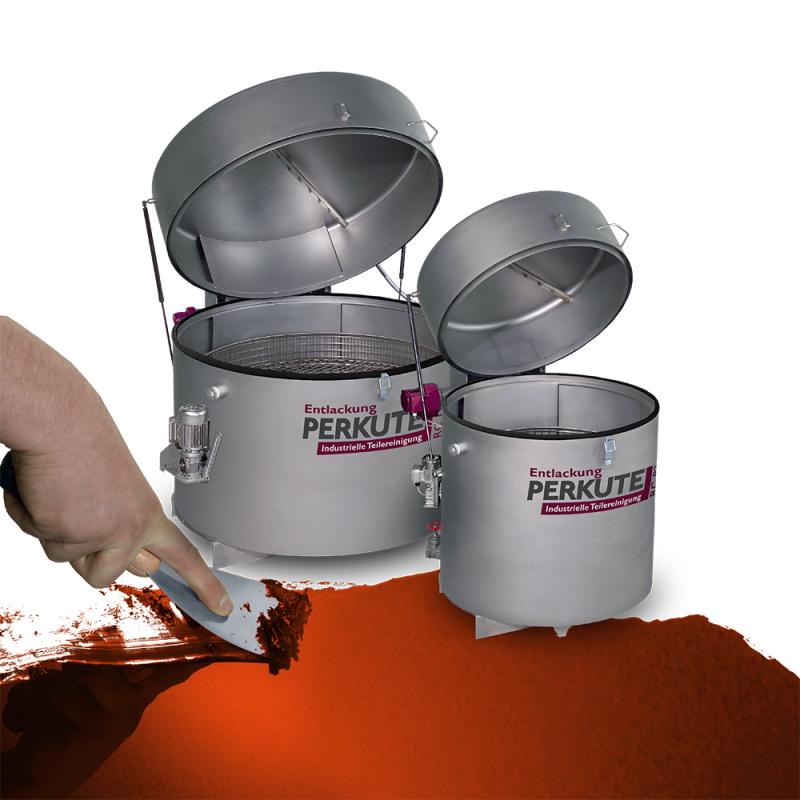

Paint stripping system Clean-o-mat RC - E

The proven and solid single-chamber system for the automatic and
efficient paint stripping of large and small components.
The paint stripping of the products is carried out in the spray process using an appropriate organic bio stripper.
Following this, the rinse occurs in a separate system.

The PERKUTE-system: economically - environmental – effektive
Leaflet download RC-E english.pdf (1.114,67 KB)
1.088,55 KB
Do you have any further questions?
Ask us like to hear your questions about our products, our services and our company in general. We appreciate your interest in Perkute.
+49 (0) 59 71 / 8 08 16-80 info@perkute.de contact form

Basic equipment

  • Compact and sturdy construction
  • Made of stainless steel
  • Simple operation
  • Space-saving
  • 3D-blast pipe system incl. fan nozzles
  • Low water pressure switch as dry-run protection
  • Suction filter made of stainless steel front of the pump
  • Automatic steam extraction
  • Electronic basket drive
  • 2“ ball valve for the tank emptying
  • Safety limit switch at cover
  • Stainless-steel pump


Technical data

Clean-o-mat RC-ERC - E 82RC - E 122RC - E 162
Usable basket Ø
Usable height
Loading height		790 mm
500 mm
930 mm		1190 mm
500 mm
830 mm		1520 mm
550 mm
910 mm
Permissible basket load300 kg500 kg500 kg
Liquid volume
Pump flow rate
Injection pressure		150 l
150 l/min
2,5 bar		370 l
240 l/min
4 bar		450 l
450 l/min
4,5 bar
Rating
Pump motor
Heating capacity
Turning basket drive
Steam exhaust1-step		230/400 V/ 50 Hz/
1,5 kW
2x3 kW
0,09 kW
0,45 kW		230/400 V/ 50 Hz/
4 kW
3 x 5 kW
0,09 kW
0,45 kW		230/400 V/ 50 Hz/
5,5 kW
3 x 5 kW
0,09 kW
0,45 kW
Total height
Total width
Total depth
Total weight		1200 mm
1010 mm
1180 mm
220 kg		1250 mm
1650 mm
1550 mm
400 kg		1400 mm
2200 mm
2000 mm
500 kg

No lieability accepted for specifications, which are subject to alteration.

Tailor-made machines to be quoted on request.

Before and after pictures

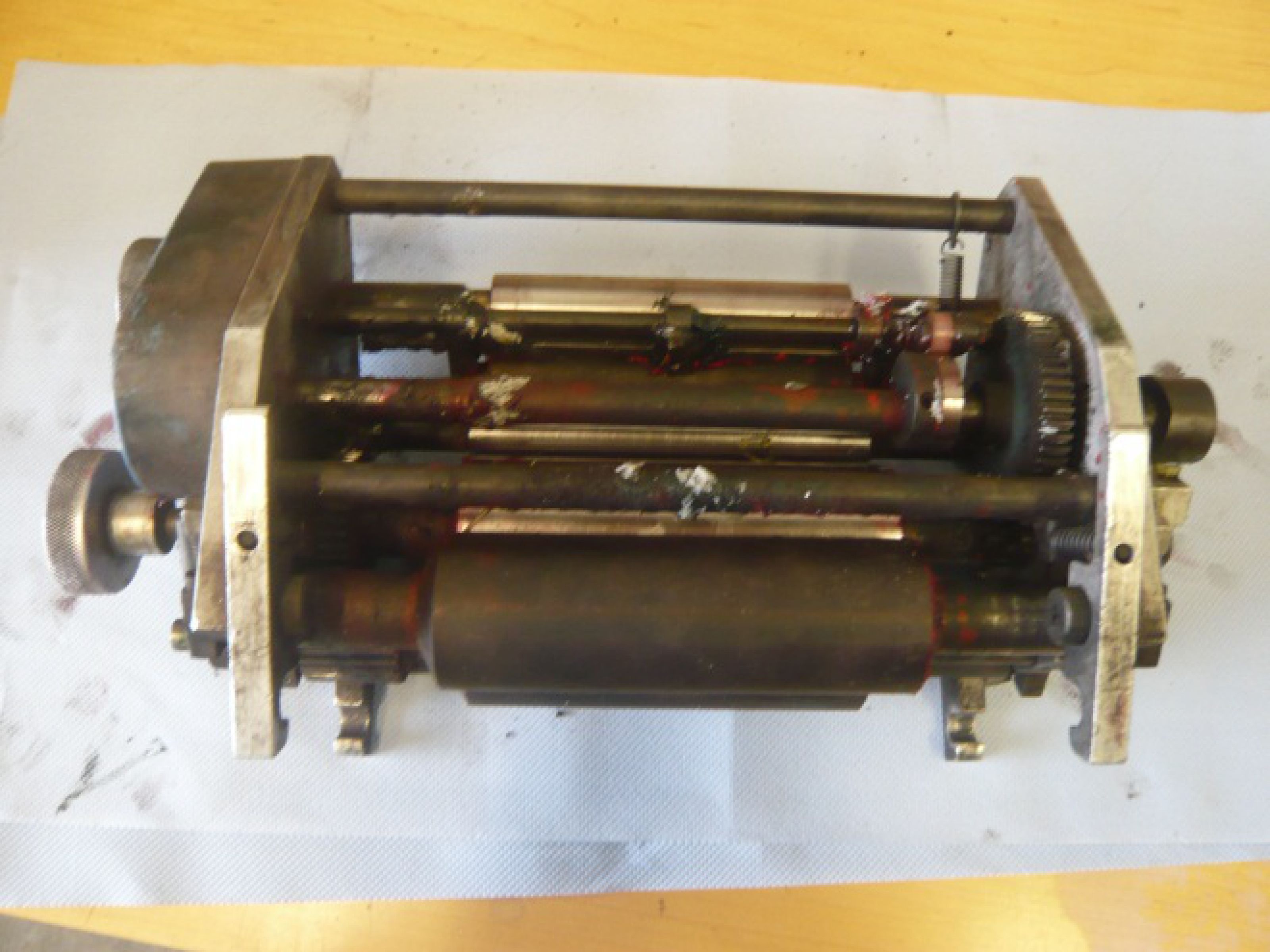

Print roller before
Print roller before

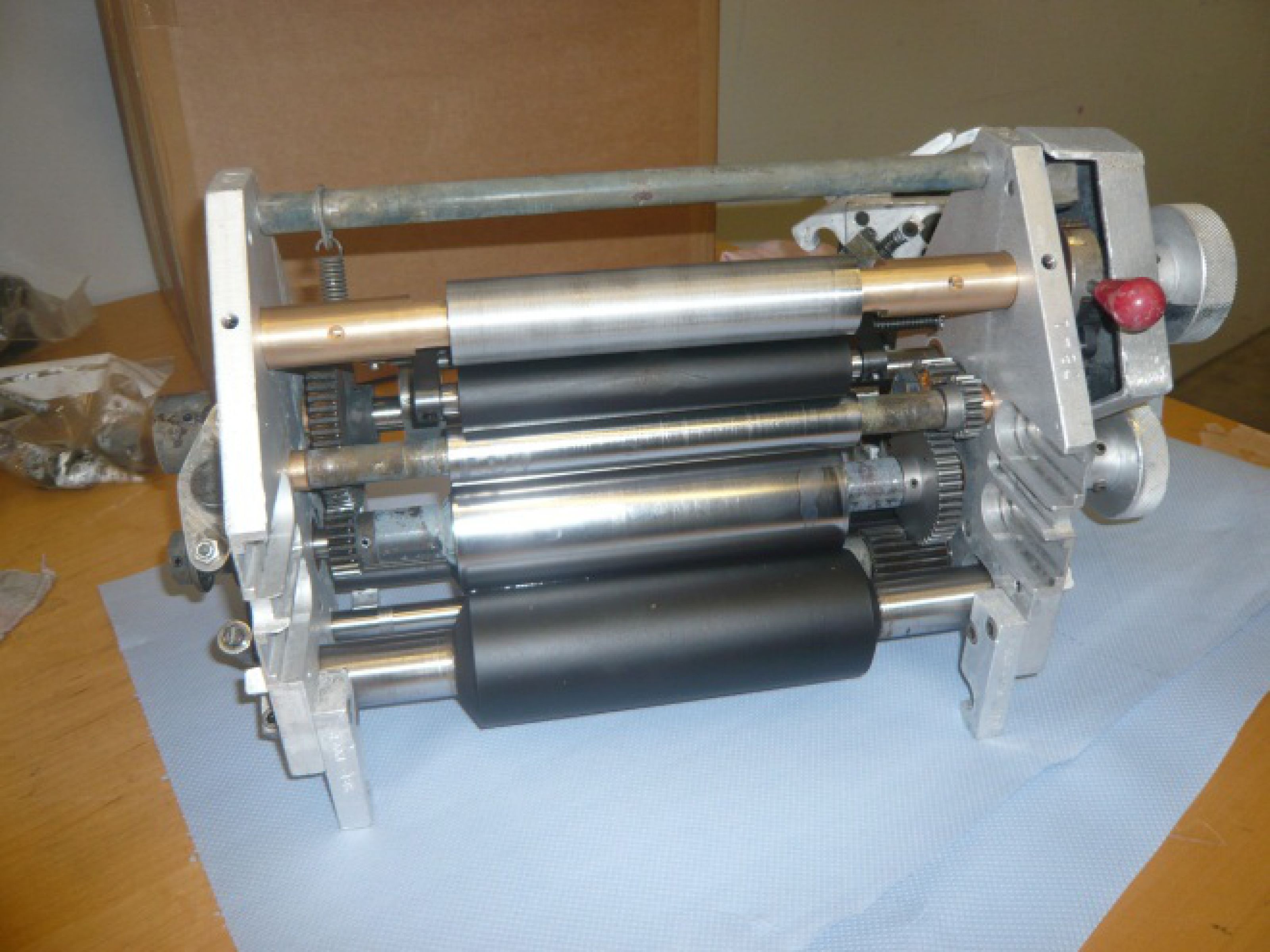

Print roller after
Print roller after

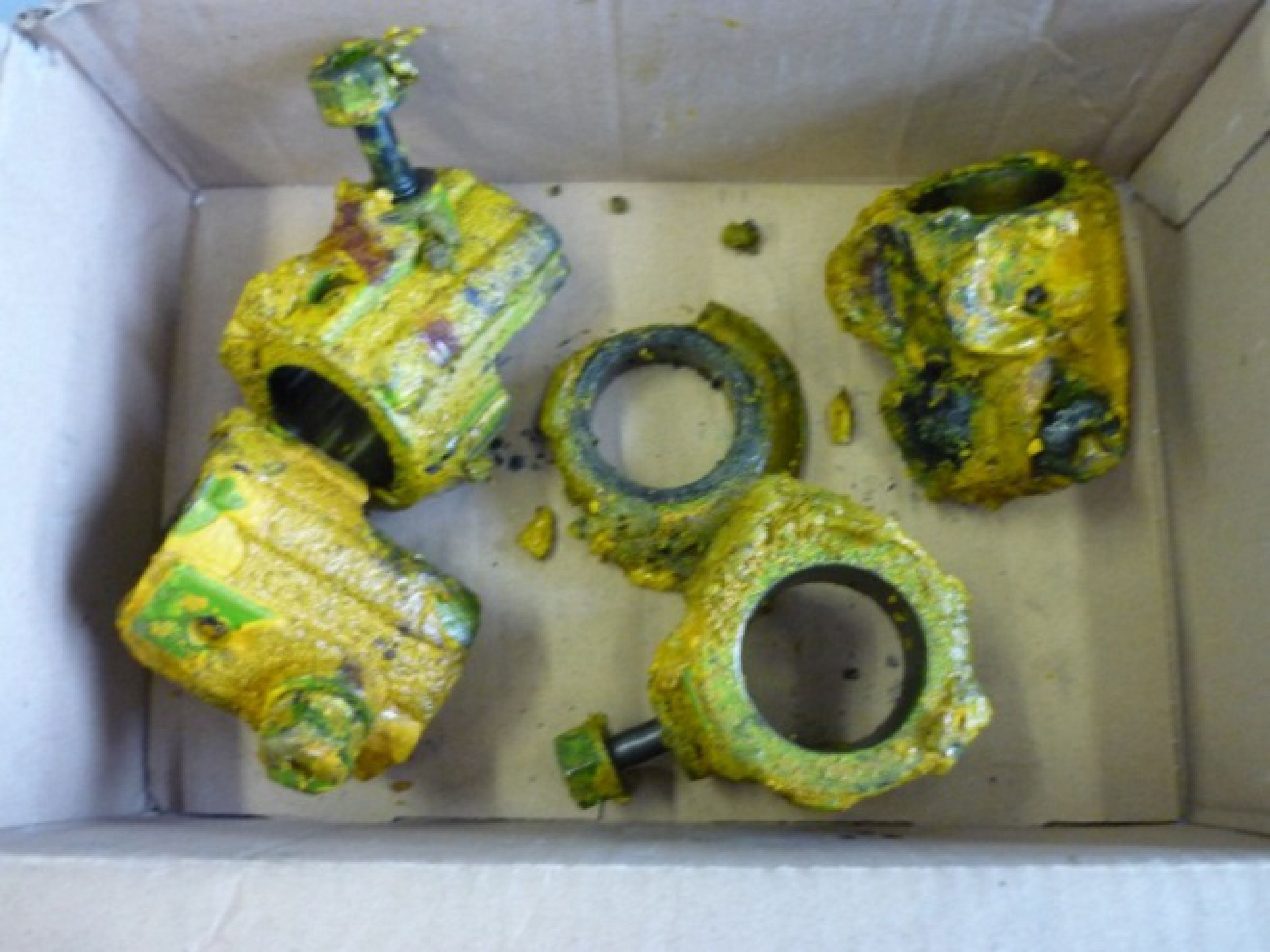

Compression coupling before
Compression coupling before

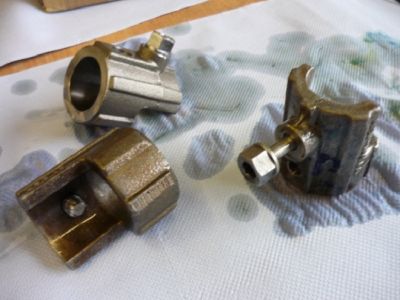

Compression coupling after
Compression coupling after

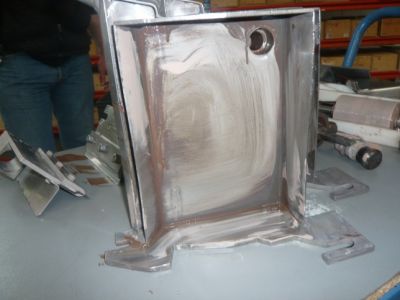

Basins - element before
Basins - element before

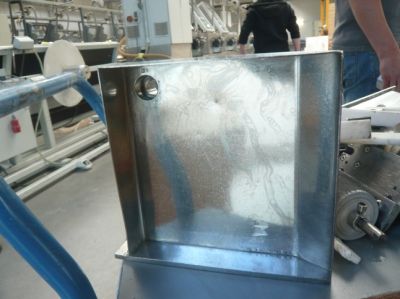

Basins - element after
Basins - element after

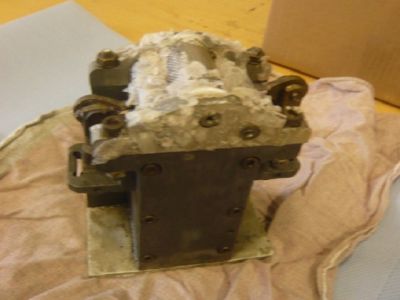

Coating roller (glue) before
Coating roller (glue) before

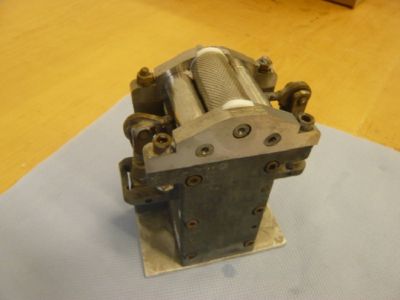

Coating roller (glue) after
Coating roller (glue) after
