Clean-o-mat RC

The inexpensive series product for universal use.

A solid single-chamber parts cleaner for automatic water based spray cleaning. This series is extendable by varies extras which can be retrofitted. The RC-machine is a low costs entry to the modern world of industrial parts cleaning.

The PERKUTE-system: economically - environmental – effektive
Do you have any further questions?
Ask us like to hear your questions about our products, our services and our company in general. We appreciate your interest in Perkute.
+49 (0) 59 71 / 8 08 16-80 info@perkute.de contact form

Basic equipment

  • Compact and sturdy construction
  • Made of stainless steel
  • Simple operation
  • Space-saving
  • 3D-blast pipe system incl. fan nozzles
  • Low water pressure switch as dry-run protection
  • Suction filter made of stainless steel front of the pump
  • Adapter for steam extraction
  • Basket drive by water pressure
    (RC 68, RC 82)
  • Electronic basket drive
    (RC 122, RC 162)
  • 2“ socket slide valve for the tank emptying
  • Safety limit switch at cover


Technical Data

Clean-o-mat RCRC 68RC 82RC 122RC 162
BasketØ
Usable height
Loading height
690 mm
450 mm
825 mm
790 mm
500 mm
930 mm
1190 mm
500 mm
830 mm
1520 mm
550 mm
910 mm
Permissable basket load100 kg300 kg350 kg500 kg
Liquid volume
Pump flow rate
Injection pressure
100 l
100 l/min
2,4 bar
150 l
200 l/min
3 bar
370 l
280 l/min
4,5 bar
450 l
450 l/min
4,5 bar
Rating
Pump motor
Heating capacity
230/400 V 50 Hz
0,75 kW
6 kW
230/400 V 50 Hz
1,5 kW
6 kW
230/400 V 50 Hz
4 kW
9+6 kW
230/400 V 50 Hz
5,5 kW
9+9 kW
Total height
Total witdth
Total depth
Total weight
980 mm
950 mm
800 mm
70 kg
1200 mm
1010 mm
1180 mm
220 kg
1250 mm
1650 mm
1550 mm
400 kg
1400 mm
2200 mm
2000 mm
500 kg

No lieability accepted for specifications, which are subject to alteration.

Tailor-made machines to be quoted on request.

Details/ Equipment

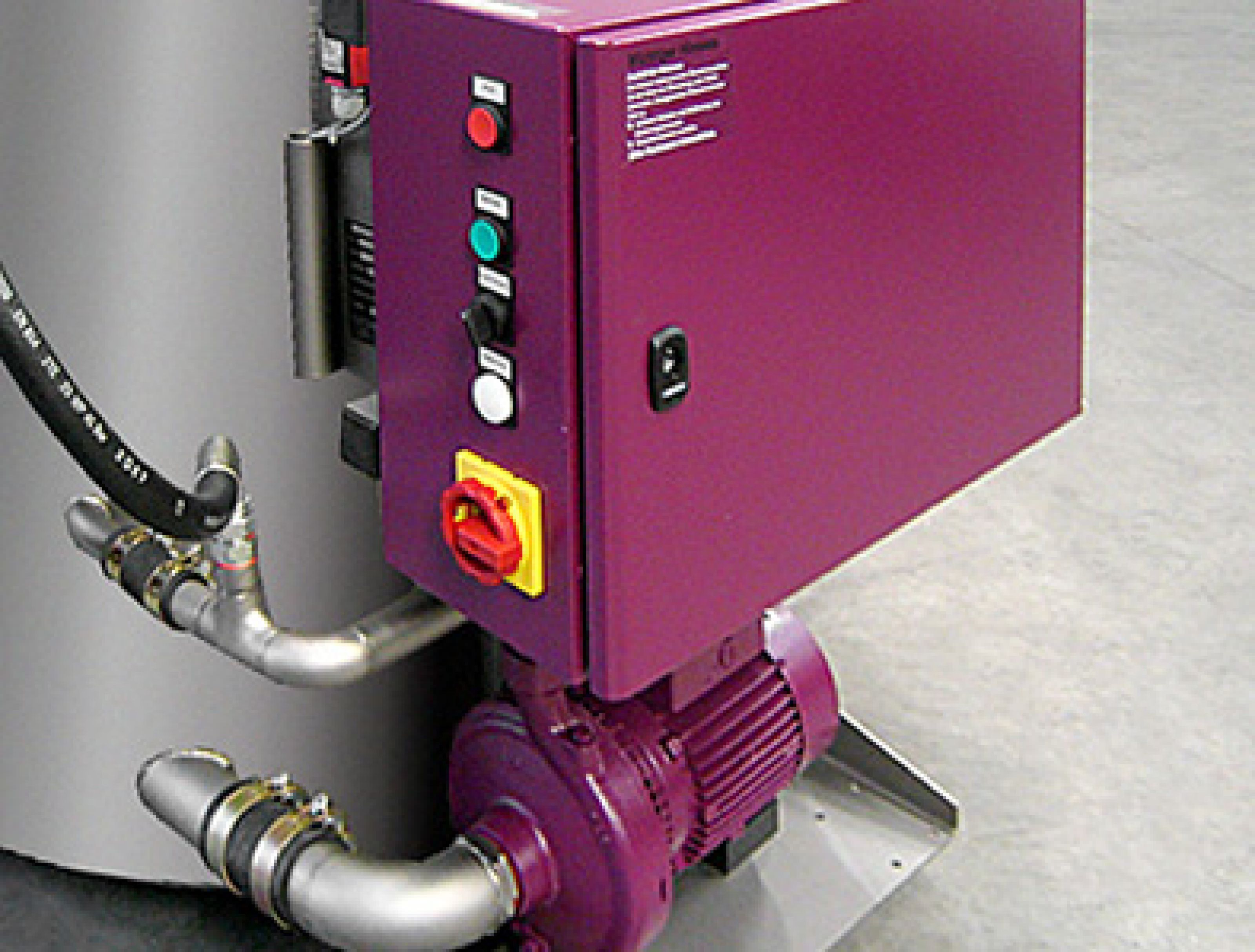

Operation element and washing pump
Operation element and washing pump
Rotary basket RC 82
Rotary basket RC 82
Blast pipe system in detail
Blast pipe system in detail
