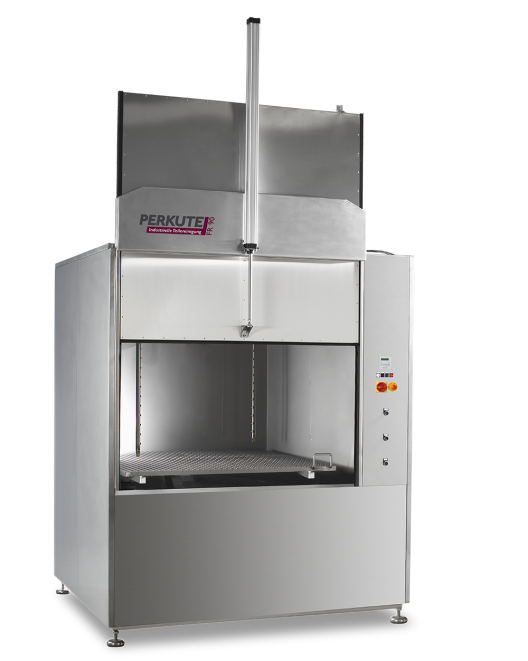

Clean-o-mat FR

Cleaning system for large, unhandy parts and small series parts.

This PERKUTE cleaning system cleans simply and effectively with a very confined cleaning space. The machine is easily loaded by using either a crane or a loading carriage to place the items to be cleaned on the platform. A noticeable feature of the FR cleaning machine is that it offers several simultaneous work process.

The PERKUTE-system: economically - environmental – effektive
Do you have any further questions?
Ask us like to hear your questions about our products, our services and our company in general. We appreciate your interest in Perkute.
+49 (0) 59 71 / 8 08 16-80 info@perkute.de contact form

Basic equipment

  • Made of stainless steel
  • Simple operation
  • Space-saving
  • Tank cover, filter basket incl.
  • Low water pressure switch as dry-run
    protection
  • Suction filter made of stainless steel
    in front of the pump
  • Adapter for steam extraction
  • Minimum operational costs because of housing insulation in
    sandwich construction
  • Rotationg blast pipe system incl. fan nozzles
  • Adjustable feed
  • Pneumatic lift gate
  • Programmable electronic control


Technical Data

Clean-o-mat FRFR 70FR 90FR 130
Cleaning grate
Usable height
Loading height
□ 700 x 700 mm
450 mm
915 mm
□ 900 x 900 mm
650 mm
920 mm
□ 1300 x 1300 mm
1000 mm
925 mm
Permissible basket load300 kg300 kg500 kg
Liquid volume
Pump flow rate
Injection pressure
200 l
140 l/min
3 bar
400 l
280 l/min
4,5 bar
600 l
350 l/min
4 bar
Rating

Pump motor
Heating capacity
Steam extraction
230/400 V
20 A/ 50 Hz
1,5 kW
9 kW
0,11 kW
230/400 V
25 A/ 50 Hz
4 kW
9 kW
0,11 kW
230/400 V
35 A/ 50 Hz
4 kW
18 kW
0,45 kW
Total height **
Total width
Total depth
Total weight
2300 mm
1220 mm
1000 mm
180 kg
2630 mm
1420 mm
1210 mm
250 kg
3550 mm
1880 mm
1670 mm
350 kg

* * open lift door
No liability accepted for specifications, which are subject to alteration.


Tailor-made machines to be quoted on request.

Details/ Equipment

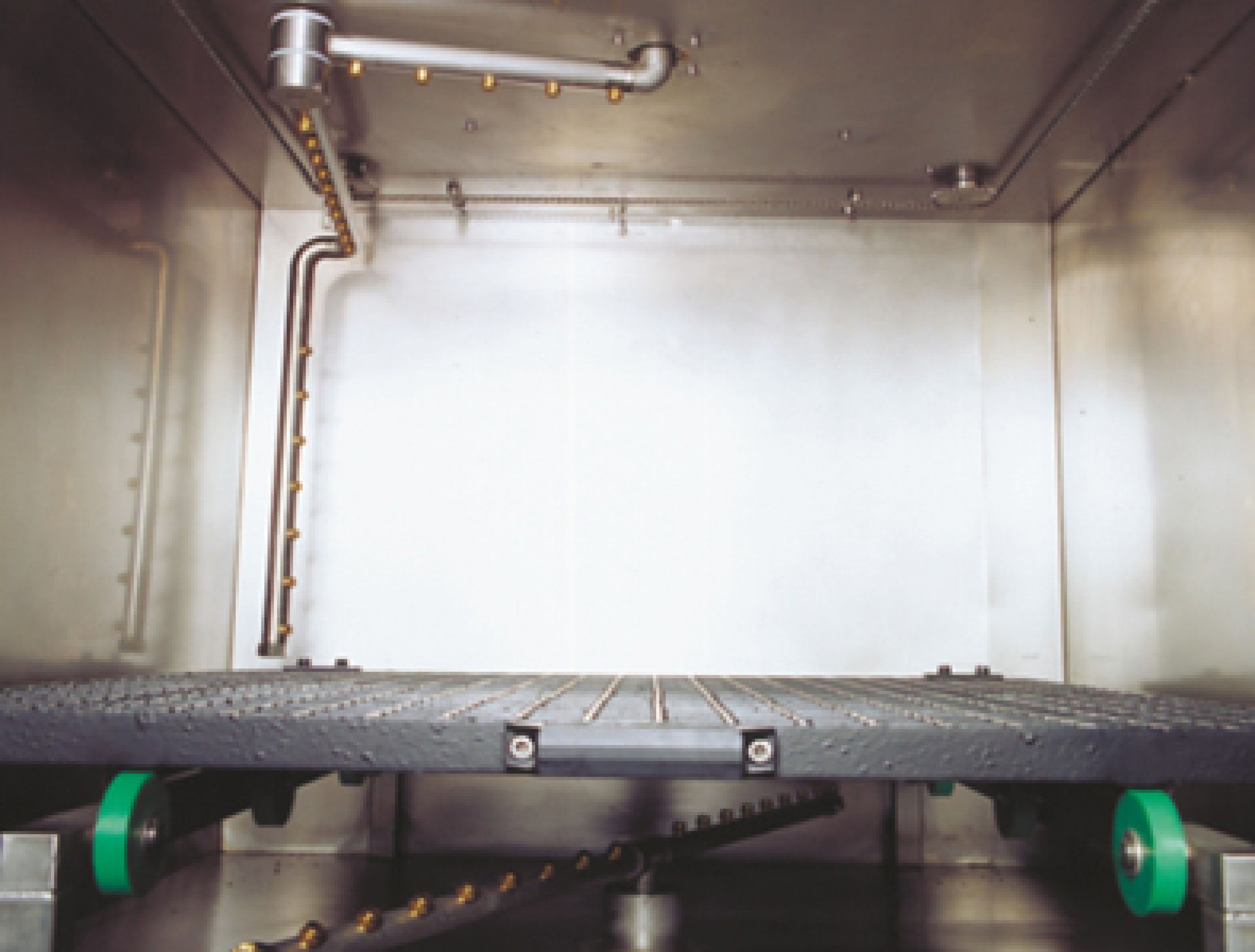

(Option) Square blast pipe system
(Option) Square blast pipe system

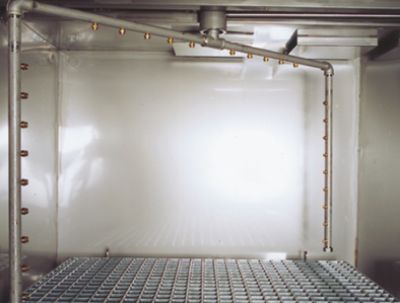

(Standard) Rotating blast pipe system
(Standard) Rotating blast pipe system

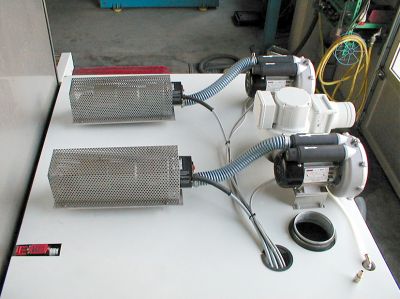

(Option) hot air drying by high-capacity blower
(Option) hot air drying by high-capacity blower

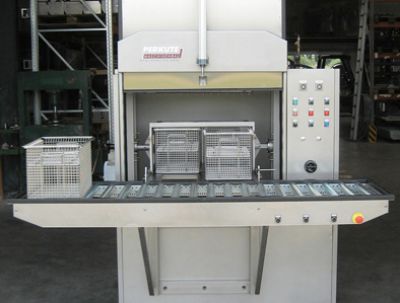

Clean-o-mat FR 90 drum facility and conveyor belt incl.
Clean-o-mat FR 90 drum facility and conveyor belt incl.
