Exhibition machine

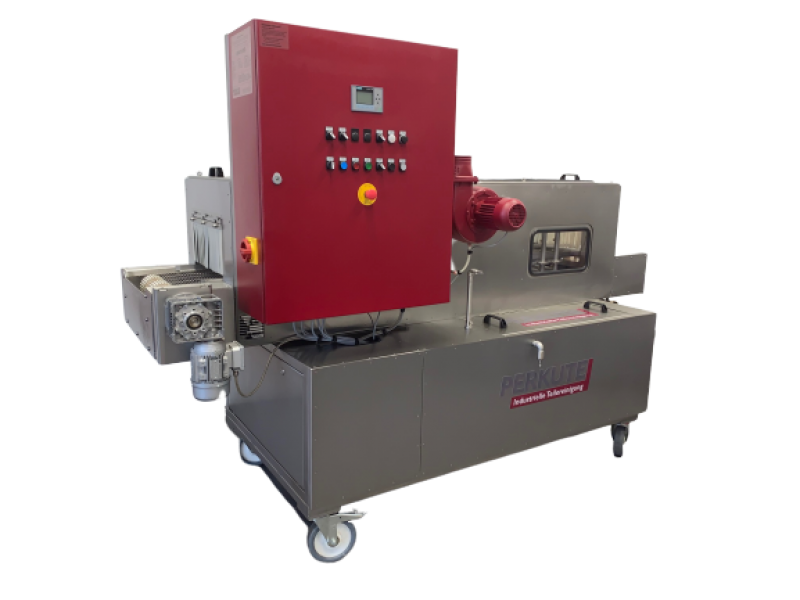

Conveying cleaning machine Clean-o-mat TW 104

Exhibition machine
Conveying cleaning machine Clean-o-mat TW 104
Exhibition machine
Conveying cleaning machine Clean-o-mat TW 104
Do you have any further questions?
Ask us like to hear your questions about our products, our services and our company in general. We appreciate your interest in Perkute.
+49 (0) 59 71 / 8 08 16-80 info@perkute.de contact form

Technical data

Date of construction

2018

Machine number

G1181

Tunnel passage (WxH)

400 x 200 mm

Heating capacity – washing zone

2 x 9 KW

Heating capacity – drying zone

9 KW

Pump motor – washing zone

1,5 KW; 3 bar; 200 l/mm


Equipment:

·         Suction hood 150 mm long in the infeed,

·         Washing- and draining zone (1300 mm long)

·         300 l tank

·         service hatch, lockable in the cover

·         Connection for steam exhaust

·         Variable band speed

·         Control system Siemens Logo TD

·         Belt load 48 kg/m²

·         Autom. Temperature sensor in the tank

·         Complete isolation of the tank and washing chamber

·         Partitioning of the zones by strip curtains

·         Low-water protection

·         Coupling sleeve slider in front of the pumpe

·         Spray pressure regulation

·         Link conveyor chain

·         Maintenance-friendly service doors

·         Infeed conveyor 300 mm long

·         Suction channel incl. throttle valves
in the washing- and draining area

·         Plate separator PT 200

·         Bagfilter TBF Topline, 0,5 m²

·         Automatic steam extraction

·         Automatic detergent dosing

·         Inspection window in the washing zone

·         Hot air drying area by side channel blower

·         Drainage pump "electric"
