Clean-o-mat TW

Conveying machines suitable for continuous parts cleaning with high output.

As the conveying machines are manufactured according to customers requirements they are easily integrated in the existing production layout. A variety of transportation systems and the possibility of integration allows for a very large application area; e.g. cleaning of massproduced goods, long materials, boxes, containers and pallets.

The PERKUTE-system: economically - environmental – effektive
Do you have any further questions?
Ask us like to hear your questions about our products, our services and our company in general. We appreciate your interest in Perkute.
+49 (0) 59 71 / 8 08 16-80 info@perkute.de contact form

Basic equipment

  • Made of stainless steel
  • Compact construction
  • Simple operation
  • User-friendly
  • Easy maintenance
  • Wide range of basic equipment
  • Lateraly build-up tank, filter baskets incl.
  • Temperature indicator for every region
  • Low water level protection as protection against dry running
  • Minimum operating cost because of tank insulation
  • Maintenance hatch in the hoods (lockable)
  • Suction channel in all zones, throttles incl.
  • Cock in front of the pump
  • Control system Siemens S7-1200
  • incl. text display and touch panel KTP 400


Technical Data

Clean-o-mat TWTW 102TW 103TW 104
Tunnel passage (WxH9
Loading/ unloading height approx.
200 x 200 mm
930 mm
300 x 200 mm
930 mm
400 x 200 mm
930 mm
Liquid volume WT + RT1300/ 600 l300/ 600 l300/ 600 l
Pump motor WT1,5 kW1,5 kW1,5 / 4 kW
Injection pressure WT3 bar3 bar3 / 5 bar
Pump flow rate WT200 l/min200 l/min200 l/min
Rating230/400 V
50 Hz
230/400 V
50 Hz
230/400 V
50 Hz
Heating capacity WT + RT118/ 27 kW18/ 27 kW18/ 27 kW
Blower drying5,5 kW5,5 kW5,5 kW
Total height
Total depth

Total depth
Total weight
1840 mm
1050 mm

Depending on the
zone number
1840 mm
1050 mm

Depending on the
zone number
1840 mm
1050 mm

Depending on the
zone number

Clean-o-mat TWTW 105TW 106TW 108
Tunnel passage (WxH9
Loading/ unloading height approx.
500 x 200 mm
930 mm
600 x 200 mm
930 mm
800 x 200 mm
930 mm
Liquid volume WT + RT1300/ 600 l300/ 600 l300/ 600 l
Pump motor WT1,5 kW/ 4 kW1,5 kW/ 4 kW1,5 / 4 kW
Injection pressure WT3/ 5 bar3/ 5 bar3 / 5 bar
Pump flow rate WT200/ 280 l/min200/ 280 l/min200/ 280 l/min
Rating230/400 V
50 Hz
230/400 V
50 Hz
230/400 V
50 Hz
Heating capacity WT + RT118/ 27 kW18/ 27 kW18/ 27 kW
Blower drying5,5 kW7,5 kW7,5 kW
Total height
Total depth

Total depth
Total weight
1840 mm
1050 mm

Depending on the
zone number
1840 mm
1050 mm

Depending on the
zone number
1840 mm
1250 mm

Depending on the
zone number

No liability accepted for specifications, which are subject to alteration.

Tailor-made machines to be quoted on request.

Details/ Equipment

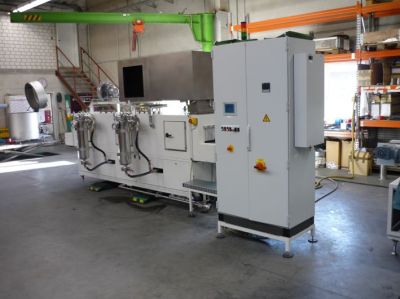

Engineering room without casing
Engineering room without casing

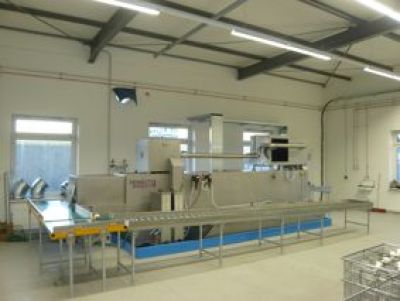

Example: Blast pipe system incl. adjustable fan nozzles
Example: Blast pipe system incl. adjustable fan nozzles

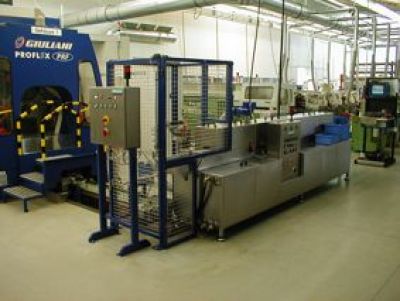

Bag filter as change-over filter
Bag filter as change-over filter

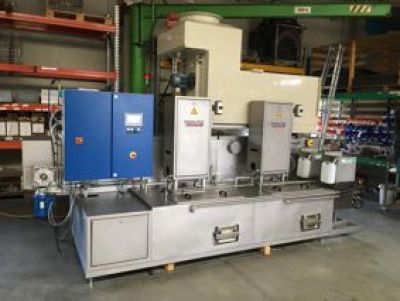

Exampe: Conveyer belt with product pick up and part monitoring
Exampe: Conveyer belt with product pick up and part monitoring
