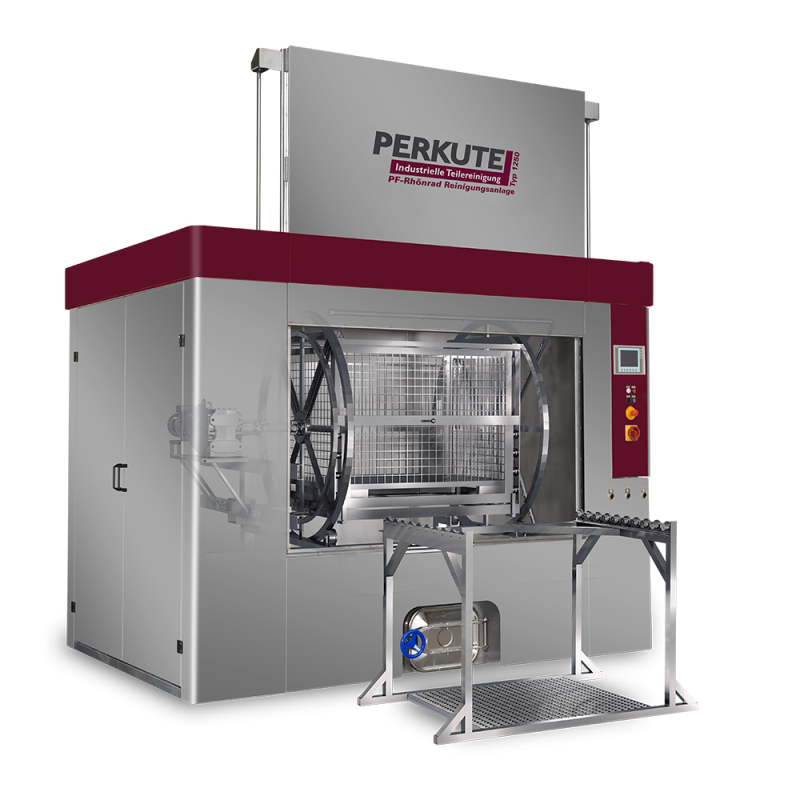

Clean-o-mat PF Rhönrad (rotating cabinet)

Clean-o-mat PF Rhönrad cleaning system

The multi-functional cleaning system for intensive cleaning of voluminous components, pipes and bulk materials in euro mesh pallets.

This cleaning machine "Rhönrad" is the ideal choice for the cleaning of parts with cropped areas, which needs to be moved during the cleaning process (rotate or swivel around the horizontal axis).

Through the use of a special height adjustable lock-system also smaller baskets can be used without problems.

Multi tank systems for special subsequent processes can complemented as well as drying and bath treatment systems.

The PERKUTE-System: economically - environmental - effektive
Do you have any further questions?
Ask us like to hear your questions about our products, our services and our company in general. We appreciate your interest in Perkute.
+49 (0) 59 71 / 8 08 16-80 info@perkute.de contact form

Basic unit

§  Stainless steel version

§  Compact and sturdy construction

§  Modern design

§  Powerful washing pump

§  High permissible basket load

§  Low water pressure switch as dry-run protection for pump and heating elements

§  Tank cover in the return flow, filter baskets incl.

§  Programmable Siemens S7-1200 touch panel control

§  Complete machine casing in modern design

§  Loading ramp incl. collection tray and grating for manual loading

§  Service hatch for cleaning activities

§  Mountings for fork-lift

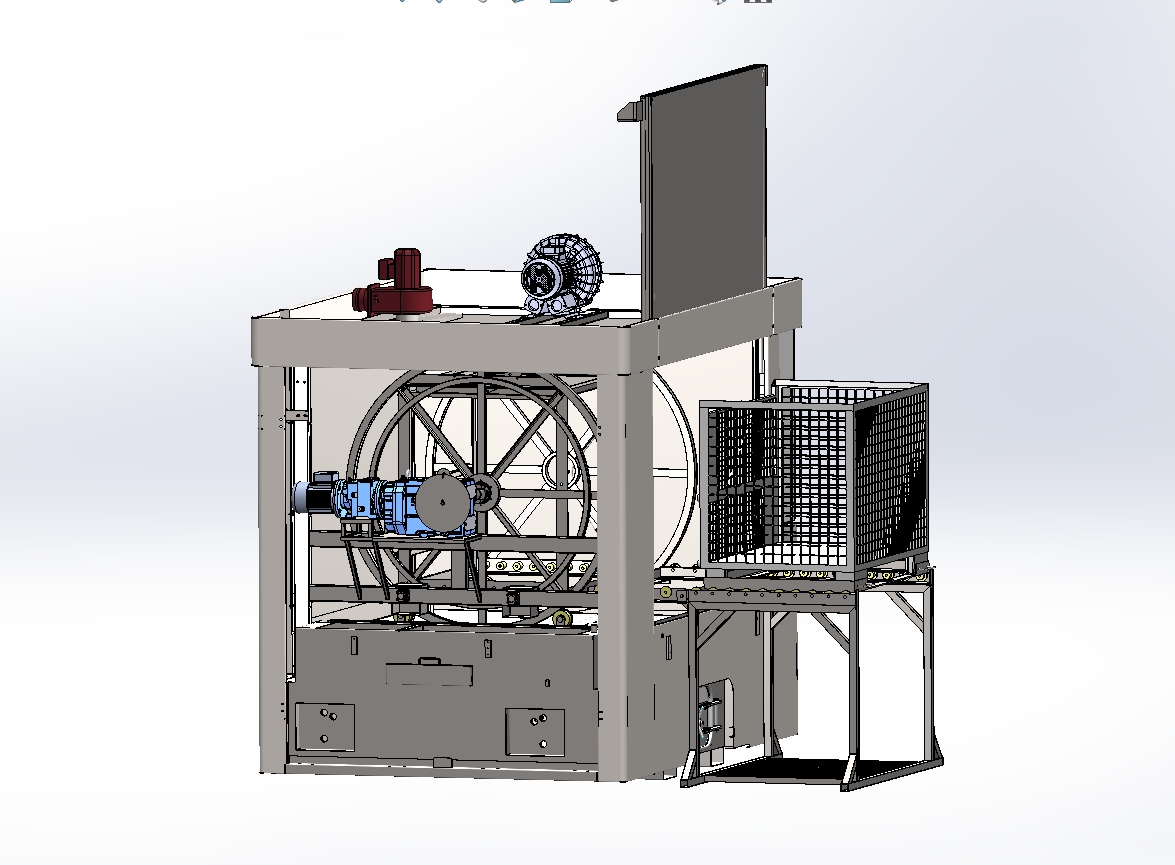

§  Intake system rotates or swivels (oscillates) around the horizontal axis

§  Loading device guided by rollers for front loading

§  Adjustable machine feet


Technical data

Clean-o-mat PF RhönradTyp 1250
Usable length
Usable height
Usable width
Loadiing height
1250 mm
970 mm
840 mm
1020 mm
Permissible basked load500 kg
Liquid volume 1 Tank
Liquid volume 2 Tank
Pump flow rate 1 Tank
Pump flow rate 2 Tank
Pump motor 1 Tank
Pump motor 2 Tank
Injection pressure 1 Tank
injektion pressure 2 Tank
Heating capacity 1 Tank
Heating capacity 2 Tank
Rating
850 l
850 l/ 400 l
450 l/min
450 l/min/ 200 l/min
5,5 kW
5,5 kW/ 1,5 kW
4,5 bar
4,5 bar/ 3 bar
27 kW
27 kW/ 15 kW
230/400 V/ 50 Hz
Total height**
Total width
Total depth
Total weight
3440 mm
2924 mm
2056 mm
1920 kg

No liability accepted for specifications, which are subject to alteration.
* * open lift door

Tailor-made machines to be quoted on request..

Details/ special equipment
