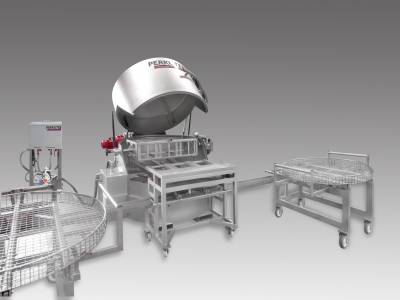

Clean-o-mat SPF (Load travelling carriage)

The ergonomic further development.

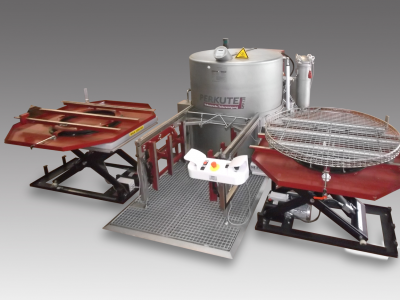

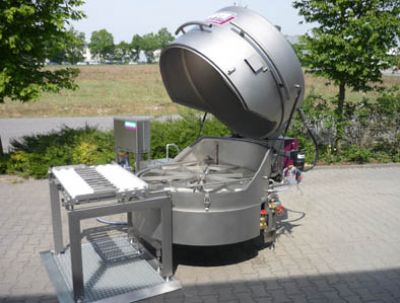

This ergonomic advanced development of the proven SP series distinguishes itself through a user-friendly charging system in the form of a movable loading trolley. For large batches, it can also alternatively be equipped with a loading ramp or lateral movement station.In this manner, loading and unloading processes, even of heavy or voluminous components, can be carried out in an optimized manner.

The PERKUTE-System: economically - environmental – effektive
Do you have any further questions?
Ask us like to hear your questions about our products, our services and our company in general. We appreciate your interest in Perkute.
+49 (0) 59 71 / 8 08 16-80 info@perkute.de contact form

Basic equipment

  • Made of stainless steel
  • Compact and sturdy construction

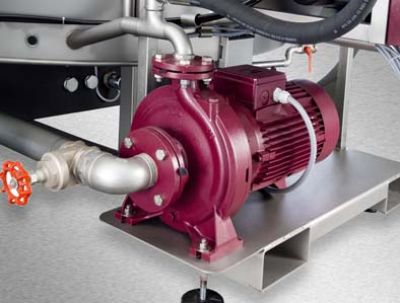

  • Powerful stainless steel wash pump
  • Mobile, can be used anywhere
  • 3D-blast pipe system
    incl. fan nozzles
  • Low water pressure switch as dry-run protection
  • Electronic basket drive
  • Tank cover in the return flow,
  • Skimmer
  • Control system Siemens S7-1200
    incl. text display and touch panel KTP 400
    as well as control panel on a separate stand
  • Automatic steam extraction
  • High permissible basket load
  • Safety limit switch at cover
  • 2" socket slide valve for the tank emptying
  • Load travelling carriage with catch basin and drain valve
  • Rotating basket by role system retractable
  • Drive-in aid for effortless locking of the travelling carriage

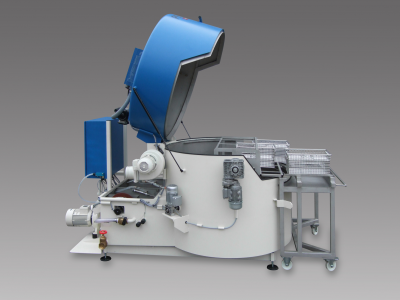

  • Automatic rotating basket pre-cycle


Technical Data

Clean-o-mat SPFSPF 80SPF 100SPF 120SPF 160SPF 200
Basket Ø
Usable height
Loading height
770mm
500 mm
750 mm
980 mm
500 mm
750 mm
1170 mm
500 mm
650 mm
1600 mm
550 mm
800 mm
1980 mm
550 mm
820 mm
Permissible basked load*300 kg*300 kg*500 kg*500 kg*1000 kg*
Liquid volume
Pump flow rate
Injection pressure
150 l
200 l/min
3 bar
255 l
280 l/min
5 bar
210 l
280 l/min
3 bar
370 l
450 l/min
4,5 bar
840 l
450 l/ min
4,5 bar
Rating
Pump motor
Heating capacity
Cage drive
Steam extraction1-step
230/400 V /50 Hz
1,5 kW
6 kW
0,09 kW
0,11 kW
230/400 V /50 Hz
4 kW
9 kW
0,09 kW
0,45 kW
230/400 V/ 50 Hz
4 kW
9 kW
0,37 kW
0,45 kW
230/400 V/ 50 Hz
5,5 kW
9+6 kW
0,37 kW
0,45 kW
30/400 V/ 50 Hz
7,5 kW
4x9 kW
0,37 kW
0,45 kW
Dimensions machine
Total height
Total width
Total depth
Total weight
1440 mm
1265 mm
1650 mm
200 kg
1530 mm
1400 mm
1675 mm
390 kg
1500 mm
1550 mm
1820 mm
415 kg
1700 mm
2100 mm
2200 mm
675 kg
1700 mm
2300 mm
3150 mm
1500 kg
Dimensions
Load travelling carriage
Total height
Total width
Total depth
Total weight
800 mm
820 mm
1180 mm
80 kg
800 mm
1030 mm
1630 mm
90 kg
770 mm
1230 mm
1820 mm
100 kg
750 mm
1530 mm
2125 mm
150 kg
750 mm
2030 mm
2625 mm
200 kg

* Surface load/ load capacity increase possible
No lieability accepted for specifications, which are subject to alteration.

Tailor-made machines to be quoted on request.

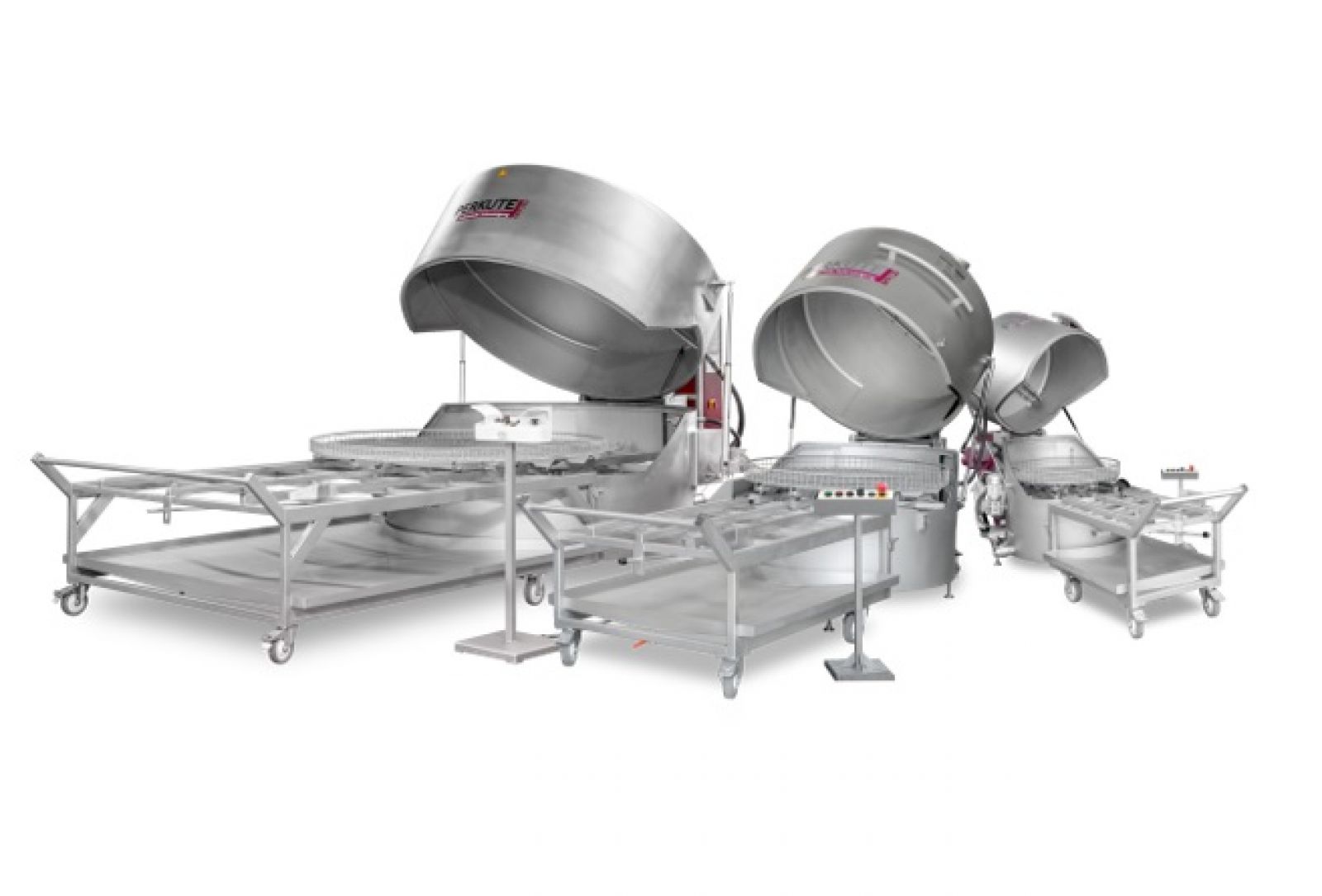

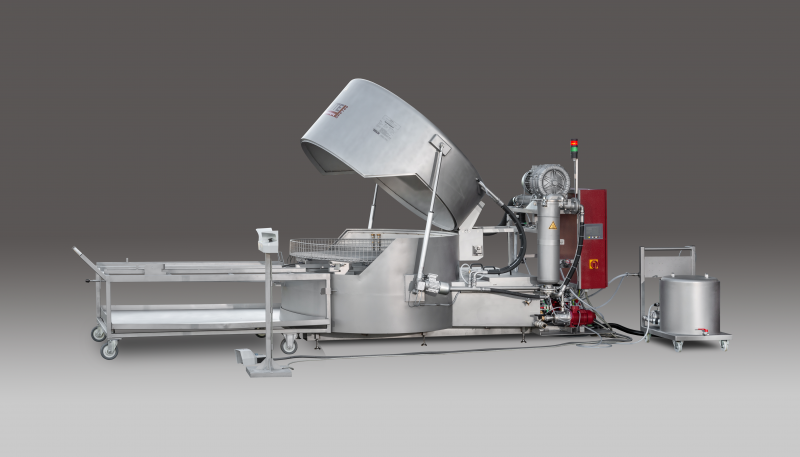

Machine expamples Toploader series SPF
